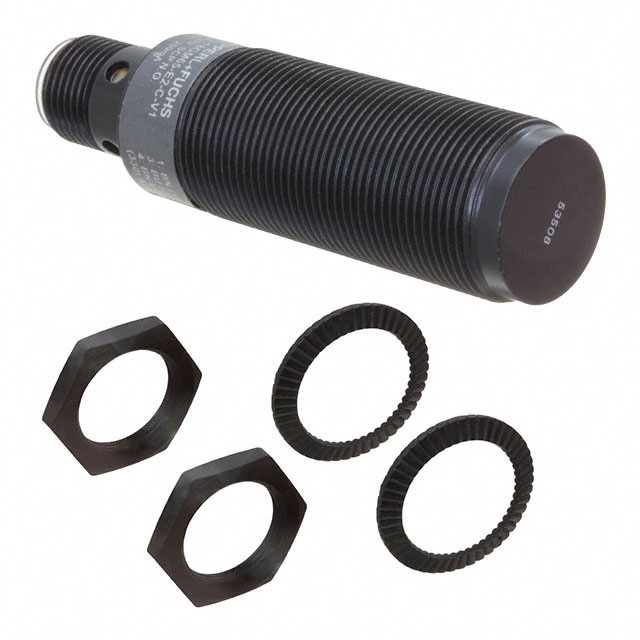

UB300-18GM40-E5-V1
ActivePEPPERL+FUCHS
ULTRASONIC SEN 35-350MM ANALOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB300-18GM40-E5-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 4-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance [Max] | 11.811 in |
| Sensing Distance [Max] | 300 mm |
| Sensing Distance [Min] | 1.378 in |
| Sensing Distance [Min] | 35 mm |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 262.38 | |
| 10 | $ 240.52 | |||
Description
General part information
UB300 Series
ULTRASONIC SEN 35-350MM ANALOG
Documents
Technical documentation and resources
