APL3015EC-F01

Active

Kingbright

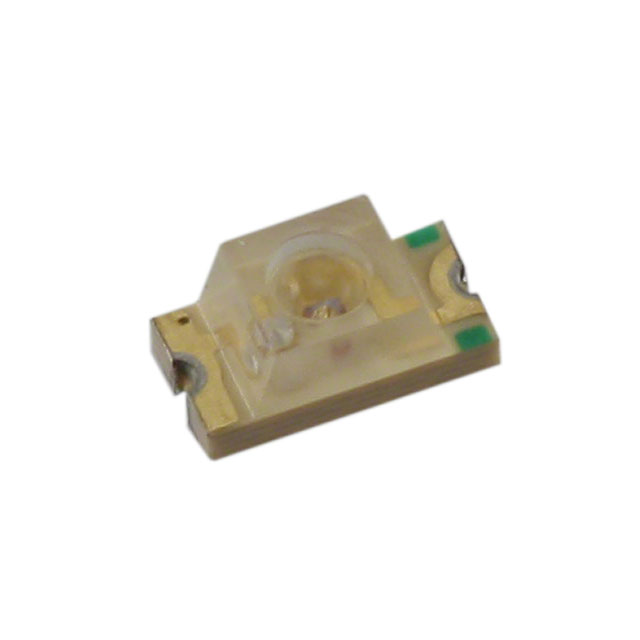

20MA COLORLESS TRANSPARENT LENS 12MCD 617NM RED 70° 2V SMD,3X1.5MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APL3015EC-F01

Active

Kingbright

20MA COLORLESS TRANSPARENT LENS 12MCD 617NM RED 70° 2V SMD,3X1.5MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APL3015EC-F01

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.4 mm
Lens Color	Colorless
Lens Size [diameter]	0.18 mm
Lens Transparency	Clear
Millicandela Rating	12 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	Chip LED
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	617 nm
Wavelength - Peak	627 nm

APL3015 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Wavelength - Peak	Configuration	Color	Mounting Type	Millicandela Rating	Wavelength - Dominant	Height (Max) [Max] [z]	Current - Test	Supplier Device Package	Viewing Angle	Package / Case
Kingbright APL3015SYCK-F01	1.5 mm	3 mm	0.18 mm	Clear	2 V	2-SMD No Lead	Colorless	590 nm	Standard	Yellow	Surface Mount	350 mcd	590 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015CGCK-F01	1.5 mm	3 mm	0.18 mm	Clear	2.1 V	2-SMD No Lead	Colorless		Standard	Green	Surface Mount	120 mcd	570 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015SGC-F01	1.5 mm	3 mm	0.18 mm	Clear	2.2 V	2-SMD No Lead	Colorless	565 nm	Standard	Green	Surface Mount	18 mcd	568 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015MGC-F01	1.5 mm	3 mm	0.18 mm	Clear	2.1 V	2-SMD No Lead	Colorless		Standard	Green	Surface Mount	180 mcd	570 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015SECK-F01	1.5 mm	3 mm	0.18 mm	Clear	2.1 V	2-SMD No Lead	Colorless	610 nm	Standard		Surface Mount	350 mcd	601 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015EC-F01	1.5 mm	3 mm	0.18 mm	Clear	2 V	2-SMD No Lead	Colorless	627 nm	Standard	Red	Surface Mount	12 mcd	617 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015QBC/D-F01	1.5 mm	3 mm	0.18 mm	Clear	3.3 V	2-SMD No Lead	Colorless	460 nm	Standard	Blue	Surface Mount	200 mcd	465 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015SRCPRV-F01	1.5 mm	3 mm		Clear	1.85 V	2-SMD No Lead	Colorless	655 nm	Standard	Red	Surface Mount	50 mcd	640 nm	1.4 mm	20 mA	Chip LED	70 °
Kingbright APL3015ZGCK-F01	1.5 mm	3 mm		Clear	3.3 V		Colorless	515 nm	Independent	Green	Surface Mount	700 mcd	525 nm	1.6 mm	20 mA	2-SMD	70 °	1206 3014 Metric
Kingbright APL3015SURCK-F01	1.5 mm	3 mm	0.18 mm	Clear	1.95 V	2-SMD No Lead	Colorless	645 nm	Standard	Red	Surface Mount	180 mcd	630 nm	1.4 mm	20 mA	Chip LED	70 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
		10	$ 0.29
		100	$ 0.13
		500	$ 0.12
		1000	$ 0.10
	Digi-Reel®	1	$ 0.37
		10	$ 0.29
		100	$ 0.13
		500	$ 0.12
		1000	$ 0.10
	Tape & Reel (TR)	2000	$ 0.08
		6000	$ 0.08
		10000	$ 0.07
		50000	$ 0.06
		100000	$ 0.06
LCSC	Piece	1	$ 0.17
		200	$ 0.07
		500	$ 0.06
		1000	$ 0.06

Description

General part information

APL3015 Series

Red 617nm LED Indication - Discrete 2V 2-SMD, No Lead
