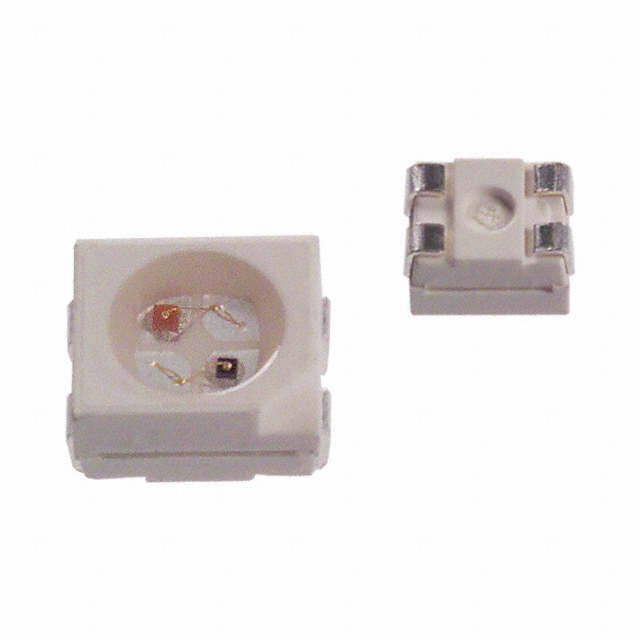

VAOS-SP4RGB4
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
VAOS-SP4RGB4
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOS-SP4RGB4 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 315 mcd |
| Millicandela Rating [custom] | 126 mcd |
| Millicandela Rating [custom] | 199 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 3.4 V, 3.4 V |
| Wavelength - Dominant | 525 nm, 470 nm, 626 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 518 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.05 | |
| 10 | $ 2.03 | |||
| 100 | $ 1.50 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.23 | |||
| Digi-Reel® | 1 | $ 3.05 | ||
| 10 | $ 2.03 | |||
| 100 | $ 1.50 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.23 | |||
| Tape & Reel (TR) | 2000 | $ 1.18 | ||
| 4000 | $ 1.14 | |||
| 6000 | $ 1.12 | |||
Description
General part information
VAOS-SP4 Series
Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.4V Green, 3.4V Blue 4-PLCC
