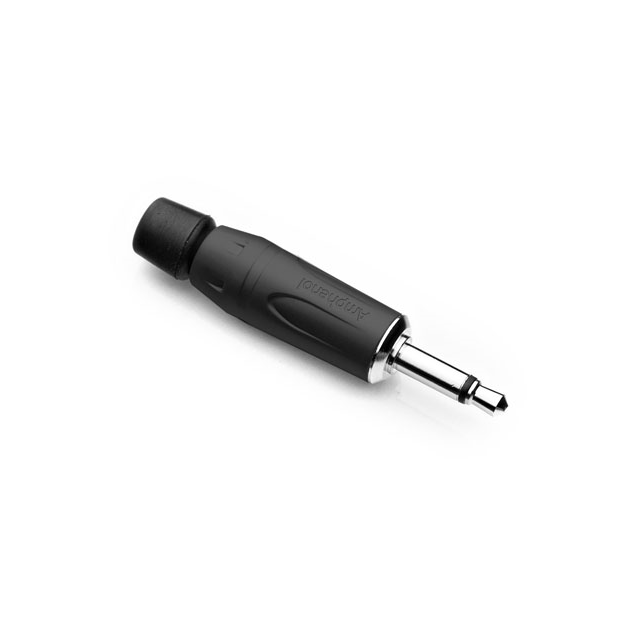

KM2PB BULK
ActiveAmphenol Sine Systems Corp
3.5MM PHONE STR MONO NICKEL BLAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KM2PB BULK |
|---|---|
| Actual Diameter [diameter] | 0.138 " |
| Actual Diameter [diameter] | 3.5 mm |
| Body Color | Black |
| Cable Opening [Max] [custom] | 0.196 in |
| Cable Opening [Max] [custom] | 4.98 mm |
| Cable Opening [Min] [custom] | 0.098 in |
| Cable Opening [Min] [custom] | 2.49 mm |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Gender | Male |
| Housing Material | Zinc Die Cast |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mating Length/Depth | 0.541 " |
| Mating Length/Depth | 13.74 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 300 | $ 3.61 | |
Description
General part information
KM2P Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Mono Connector Solder Eyelet(s)
