VS-10RIA100

Active

Vishay General Semiconductor - Diodes Division

SCR 1KV 25A TO208AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

SCR 1KV 25A TO208AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10RIA100

Current - Gate Trigger (Igt) (Max) [Max]	60 mA
Current - Hold (Ih) (Max)	130 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	240 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	225 A
Current - Off State (Max) [Max]	10 mA
Current - On State (It (AV)) (Max) [Max]	10 A
Current - On State (It (RMS)) (Max) [Max]	25 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C

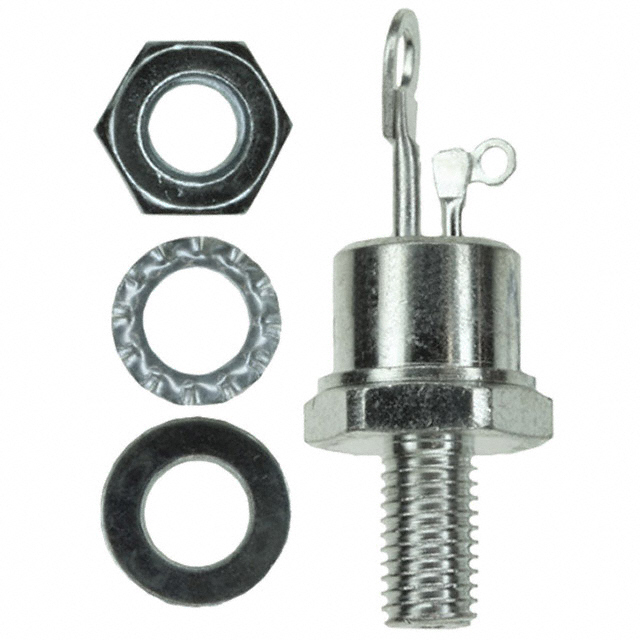

Package / Case	TO-48-3, TO-208AA, Stud
SCR Type	Standard Recovery
Supplier Device Package	TO-208AA (TO-48)
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1 kV
Voltage - On State (Vtm) (Max)	1.75 V

Part	Voltage - Off State	Current - Hold (Ih) (Max)	Current - On State (It (AV)) (Max) [Max]	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Package / Case	Current - Off State (Max) [Max]	Voltage - On State (Vtm) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	SCR Type	Current - On State (It (RMS)) (Max) [Max]
Vishay General Semiconductor - Diodes Division VS-10RIA100	1 kV	130 mA	10 A	TO-208AA (TO-48)	2 V	60 mA	Chassis Stud Mount	Stud TO-208AA TO-48-3	10 mA	1.75 V	225 A	240 A	125 °C	-65 ░C	Standard Recovery	25 A
Vishay General Semiconductor - Diodes Division VS-10RIA100M	1 kV	130 mA	25 A	TO-208AA (TO-48)	2 V	60 mA	Chassis Stud Mount	Stud TO-208AA TO-48-3	10 mA	1.75 V	190 A	200 A	125 °C	-65 ░C	Standard Recovery	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.83

General part information

SCR 1 kV 25 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
