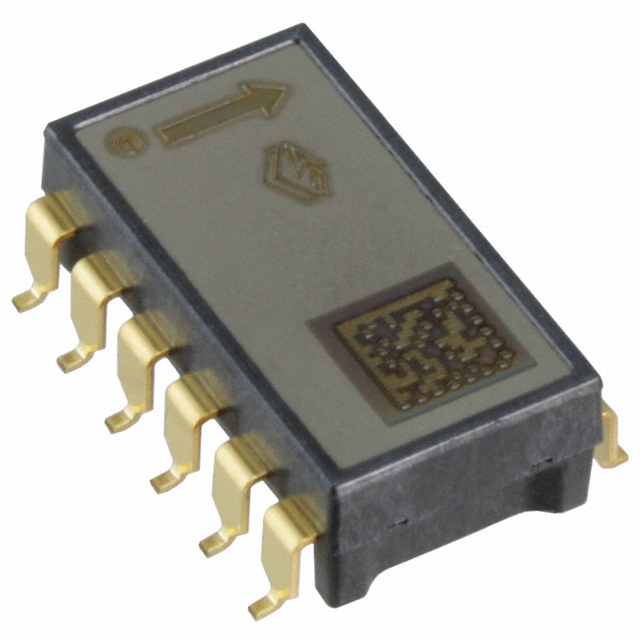

SCA103T-D04-1

Obsolete

Murata Power Solutions Inc.

SENSOR INCLINOMETER 15DEG 12SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

SENSOR INCLINOMETER 15DEG 12SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Bandwidth [Max]	Bandwidth [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Axis [x]	Sensitivity	Voltage Rating [Max]	Voltage Rating [Min]	Interface	Axis	Measuring Range	Measuring Range [Max]	Measuring Range [Min]
Murata Power Solutions Inc. SCA103T-D09	12-SMD Gull Wing	28 Hz	8 Hz	125 °C	-40 °C	Analog SPI	X
Murata Power Solutions Inc. SCA103T-D04-1	12-SMD L-Bend	28 Hz	8 Hz	125 °C	-40 °C			16 mV/A	5.25 V	4.75 V	SPI	X or Y	±15°
Murata Power Solutions Inc. SCA103T-D05-1	12-SMD L-Bend	28 Hz	8 Hz	125 °C	-40 °C				5.25 V	4.75 V	SPI	X or Y		30 °	-30 °
Murata Power Solutions Inc. SCA103T-D08	12-SMD Gull Wing	28 Hz	8 Hz	125 °C	-40 °C	Analog SPI	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Sensor Inclinometer ±15° X or Y Axis 8 ~ 28Hz Bandwidth 12-SMD, L-Bend
