1410084

Active

Phoenix Contact

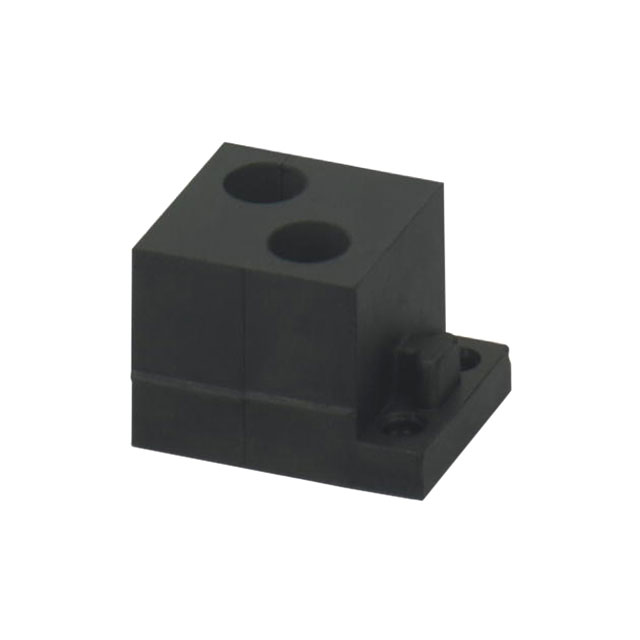

FRAME GROMMET RUBBER BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1410084

Active

Phoenix Contact

FRAME GROMMET RUBBER BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1410084

Bushing, Grommet Type	Frame Grommet
Color	Black
Diameter - Inside [Max] [diameter]	7 mm
Diameter - Inside [Max] [diameter]	0.276 "
Diameter - Inside [Min] [diameter]	0.236 "
Diameter - Inside [Min] [diameter]	6 mm
Features	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking
For Use With/Related Products	2 Cable Openings
Material	Nitrile Butadiene Rubber (NBR), Halogen Free

CES-SRG Series

Part	Bushing, Grommet Type	Color	For Use With/Related Products	Features	Material	Diameter - Inside [Min]	Diameter - Inside [Max]	Diameter - Inside [Min]	Diameter - Inside [Max]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Accessory Type	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]
Phoenix Contact 0801617	Frame Grommet	Black	Cable Wires	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)	0.433 in	0.472 in	11 mm	12 mm
Phoenix Contact 1410411	Frame Grommet	Black	2 Cable Openings	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)					8 mm	0.354 in	0.315 in	9 mm
Phoenix Contact 0801670			PLUSCON CES Sealing Frames	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)									Hole Plug
Phoenix Contact 1410042	Frame Grommet	Black	1 ASI Cable Opening (L)	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)
Phoenix Contact 1410576	Frame Grommet	Black	Cable Wires	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)
Phoenix Contact 1410107	Frame Grommet	Black	4 Cable Openings	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)						0.197 in 5 mm	0.157 " 4 mm
Phoenix Contact 0801620	Frame Grommet	Black	Cable Wires	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)					9 mm	0.394 "	0.354 "	10 mm
Phoenix Contact 1410589	Frame Grommet	Black	Cable Wires	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)						0.669 in 17 mm	0.63 in 16 mm
Phoenix Contact 0801667	Frame Grommet	Black	1 ASI Cable Opening (R)	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)
Phoenix Contact 1410084	Frame Grommet	Black	2 Cable Openings	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	Halogen Free Nitrile Butadiene Rubber (NBR)					6 mm			7 mm		0.236 "	0.276 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.04

Description

General part information

CES-SRG Series

Frame Grommet 0.236" ~ 0.276" (6.00mm ~ 7.00mm) Black
