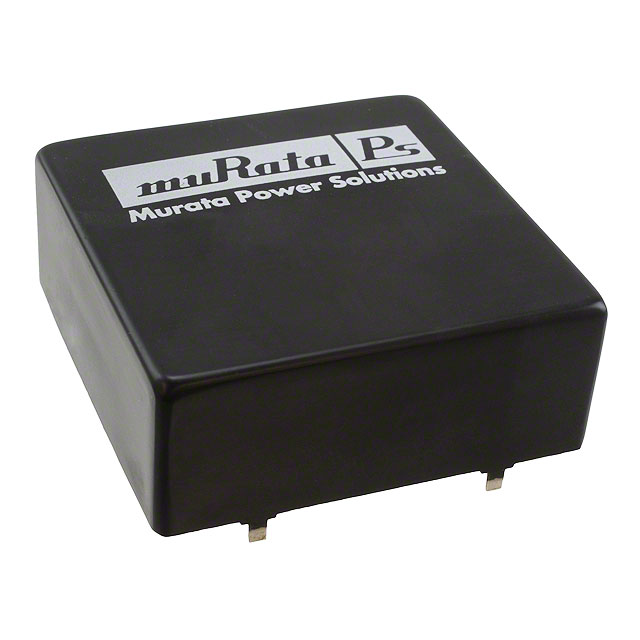

RUW15SL05HC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RUW15SL05HC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RUW15SL05HC |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 80 % |
| Features | Remote On/Off, OVP, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 20 mm |
| Size / Dimension [z] | 0.79 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 16 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RUW15 Series
Isolated Module DC DC Converter 1 Output 5V 3A 16V - 160V Input
