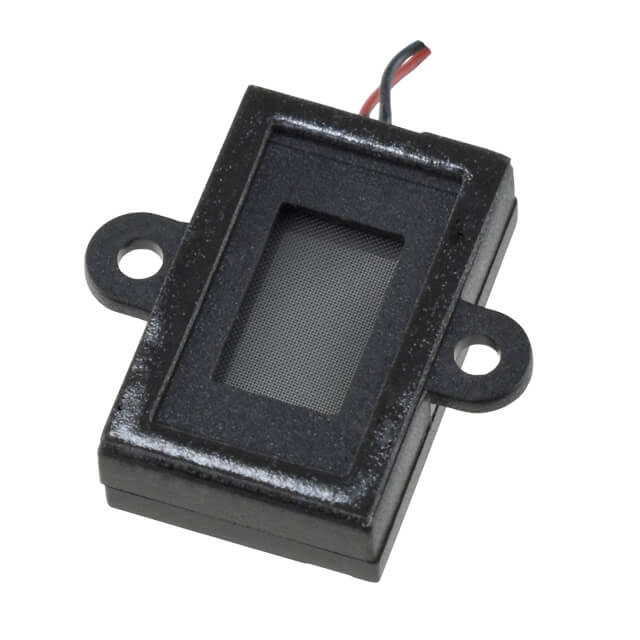

CES-20134-088PM

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 91DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 91DB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-20134-088PM

Distortion Rating	10 %
Efficiency - dBA	91 dBA
Efficiency - Testing	800mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	1300 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	500 Hz
Height - Seated (Max)	4.87 mm
Height - Seated (Max) [Max] [z]	0.192 in
Impedance	8 Ohms
Material - Cone	Polyetheretherketone (PEEK)
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	0.8 W
Shape	Rectangular
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Size / Dimension [y]	16.09 mm
Size / Dimension [y]	0.633 in
Technology	Magnetic
Termination	Wire Leads
Type	Enclosure Included, General Purpose

Part	Power - Max [Max]	Port Location	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shape	Impedance	Distortion Rating	Efficiency - dBA	Frequency Range [Max]	Frequency Range [Min]	Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Efficiency - Testing	Material - Cone	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Power - Rated	Efficiency - Type	Termination	Material - Magnet
CUI Devices CES-20134-088PMA	1 W	Top	1300 Hz	0.787 in	16.09 mm	0.633 in	20 mm	Rectangular	8 Ohms	10 %	91 dBA	20 kHz	500 Hz	General Purpose	4.87 mm	0.192 in	800mW/100mm	Polyetheretherketone (PEEK)	Magnetic	-20 C	70 °C	0.8 W	Sound Pressure Level (SPL)	Wire Leads with Connector	Nd-Fe-B
CUI Devices CES-20134-088PMB	1 W	Top	1300 Hz	0.787 in	16.09 mm	0.633 in	20 mm	Rectangular	8 Ohms	10 %	91 dBA	20 kHz	500 Hz	General Purpose	4.87 mm	0.192 in	800mW/100mm	Polyetheretherketone (PEEK)	Magnetic	-20 C	70 °C	0.8 W	Sound Pressure Level (SPL)	Wire Leads with Connector	Nd-Fe-B
CUI Devices CES-20134-088PM	1 W	Top	1300 Hz	0.787 in	16.09 mm	0.633 in	20 mm	Rectangular	8 Ohms	10 %	91 dBA	20 kHz	500 Hz	Enclosure Included General Purpose	4.87 mm	0.192 in	800mW/100mm	Polyetheretherketone (PEEK)	Magnetic	-20 C	70 °C	0.8 W	Sound Pressure Level (SPL)	Wire Leads	Nd-Fe-B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose, Enclosure Included Speaker 800 mW 500 Hz ~ 20 kHz Top Rectangular
