1825-5F
ActiveDESOLDERING BRAID, NO-CLEAN SERIES, RED, FLUX COATED COPPER, 4.9 MM WIDTH, 5 FT LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
1825-5F
ActiveDESOLDERING BRAID, NO-CLEAN SERIES, RED, FLUX COATED COPPER, 4.9 MM WIDTH, 5 FT LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1825-5F |
|---|---|
| Color | Red |
| ESD Protection | Static Dissipative (SD) |
| Length | 152.4 cm |
| Length | 5 ' |
| Product Type | Braid/Wick |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Type | No Clean |
| Width | 4.91 mm |
| Width [y] | 0.193 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1825 Series

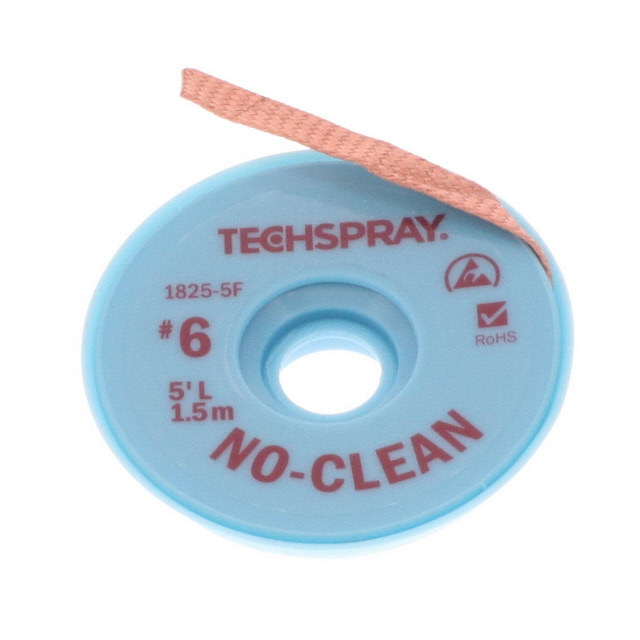

The 1825-5F from Techspray is a 5ft long No-Clean red #6 desoldering braid. Desoldering braid is a pre-fluxed copper braid that is used to remove solder which allows components to be replaced and excess solder to be removed. NoClean desoldering braid (wick) does not leave behind ionic flux residues that can collect and form branches called "dendrites". Other fluxes, if not cleaned properly, can cause dendrites that grow over time and eventually cause short circuits between traces or leads. Latent failures lead to costly returns and lower the quality perception of your products. Available in anti-static spool to prevent static build-up from damaging sensitive components. Meets or exceeds MIL-F-14256, NASA NHB 5300, 4 (34-1), NASA NPC 200-4, NASA SP5002, 1821:HP 8690-0588, 1823: HP 8690-0577, IPC Standard-J-STD-004.
Documents
Technical documentation and resources
