M13200 SL002
ActiveALPHA WIRE
MULTI-PAIR 30COND 24AWG
Deep-Dive with AI
Search across all available documentation for this part.
M13200 SL002
ActiveALPHA WIRE
MULTI-PAIR 30COND 24AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M13200 SL002 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 10.21 mm |
| Jacket (Insulation) Diameter [diameter] | 0.402 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 30 (15 Pair Twisted) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 3.23 | |
Description
General part information
M13200 Series

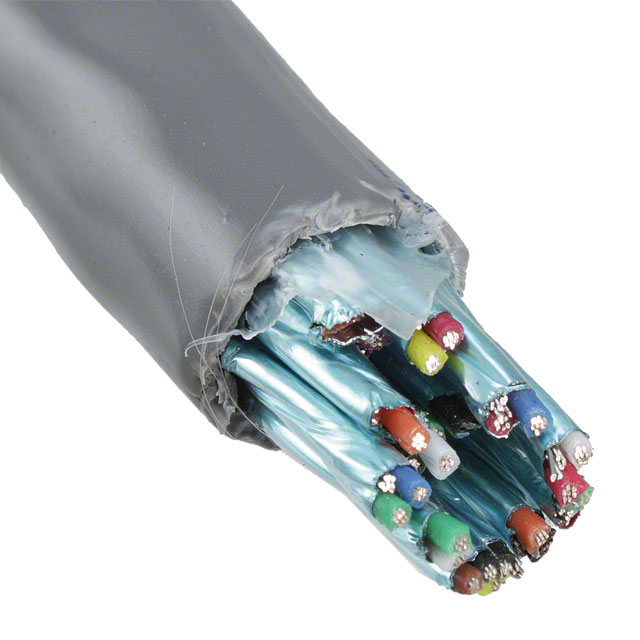

30 (15 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 500.0' (152.4m)
