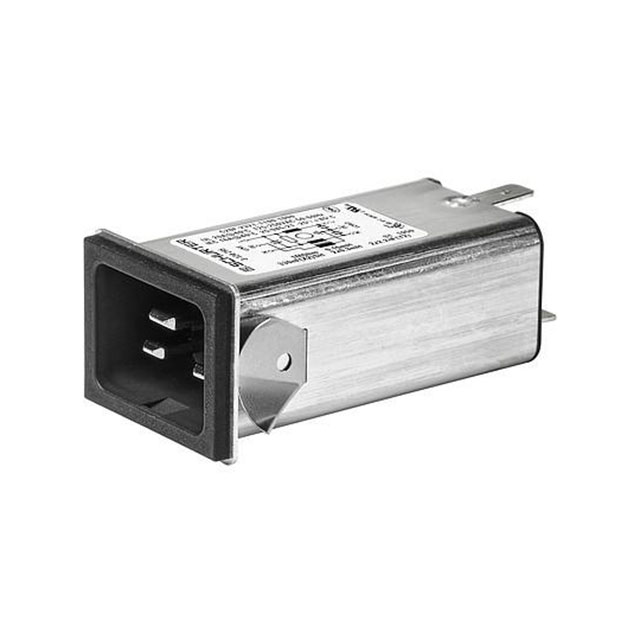

C20F-2321-1100-1000

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	C20F-2321-1100-1000

Accomodates a Fuse	False
Approval Agency	VDE, CQC, cULus
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	16 A
Current Rating - Filter	16 A, 20 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.8 mm
Panel Cutout Dimensions [y]	26.3 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Current Rating - Filter	Ingress Protection	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Filter Type	Connector Style	Connector Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Features	Material Flammability Rating	Current Rating - Appliance Inlet
SCHURTER Inc. C20F-2321-1100-1000		250 VAC	0.25 in	6.3 mm	Quick Connect	16 A 20 A	IP40	CQC cULus VDE	26.3 mm	34.8 mm	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial	IEC 320-C20	Receptacle Male Blades - Module	3 mm	0.118 in	0.039 in	1 mm	Shielded V-Lock Notch	UL94 V-0	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 31.20

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Snap-In
