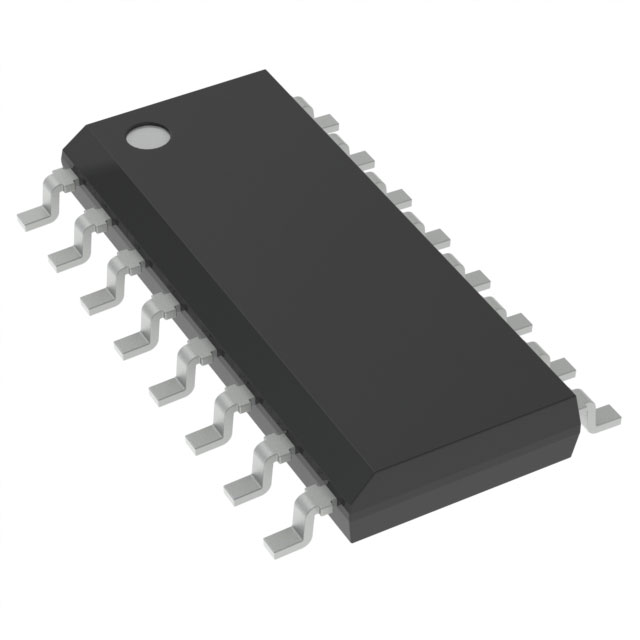

74ACT138MTR
ObsoleteSTMicroelectronics
IC DECODER/DEMUX 1 X 3:8 16SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74ACT138MTR
ObsoleteSTMicroelectronics
IC DECODER/DEMUX 1 X 3:8 16SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74ACT138MTR |
|---|---|
| Circuit | 1 x 3:8 |
| Current - Output High, Low | 24 mA |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 16-SO |
| Type | Decoder/Demultiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
74ACT138 Series
Decoder/Demultiplexer 1 x 3:8 16-SO
