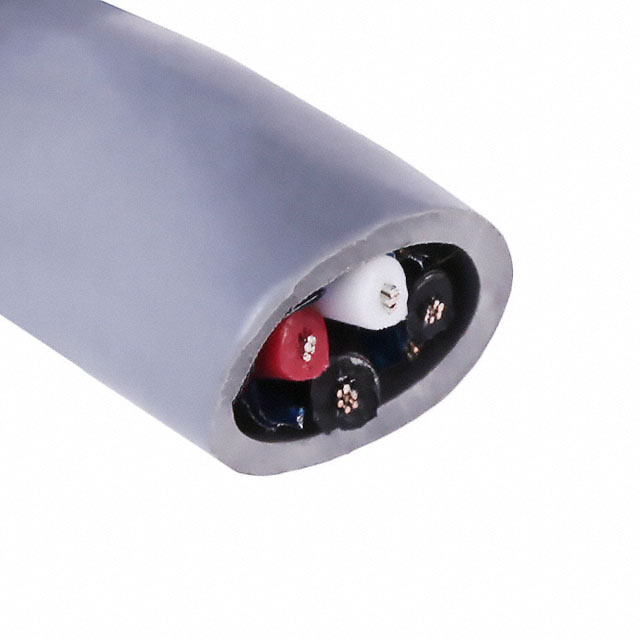

C0721A.41.10

Active

Prysmian Group

MULTI-PAIR 4COND 22AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 4COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C0721A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m, 152.4 m
Length [x]	100 ft, 500 '
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Material	Number of Conductors	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket Color	Length	Length	Voltage	Shield Type	Ratings	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Usage
Prysmian Group C0721A.41.10	Poly-Vinyl Chloride (PVC)	-20 C	80 C	100 %	Flexfoil®	4	Multi-Pair	30.5 m 152.4 m	100 ft 500 '	Poly-Vinyl Chloride (PVC)	7	30 AWG	22 AWG	Gray	1000 ft	304.8 m	300 V	Foil	ASTM B-33	Copper Annealed Tinned	5.94 mm	0.234 "	Drain Wire	Computer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 1000.0' (304.8m)
