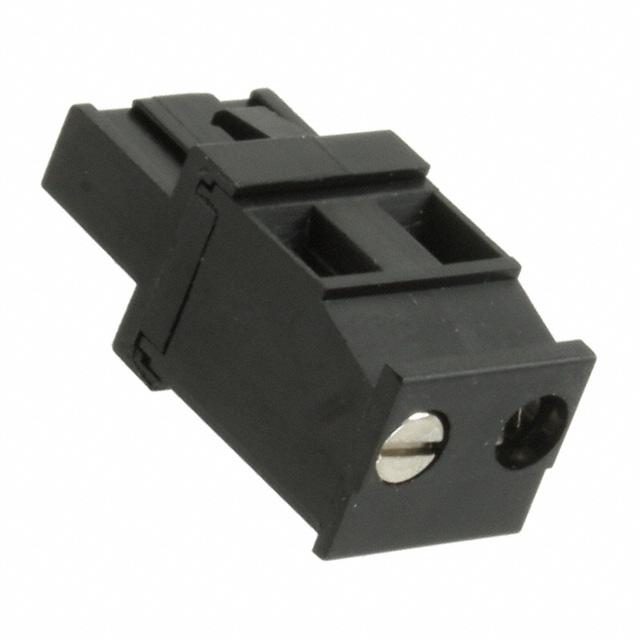

ELFT02450

Active

AMPHENOL PCD

TERM BLOCK PLUG 2POS 7.62MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 2POS 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFT02450

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Features	Retention Latches (Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	26.16 mm
Insulation Height	1.03 "
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Plug Wire Entry	90 °
Positions Per Level	2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

Part	Plug Wire Entry	Termination Style	Positions Per Level	Features	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Number of Levels	Number of Positions	Type	Material Flammability Rating	Housing Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Torque - Screw	Torque - Screw	Contact Mating Finish	Contact Material	Color	Voltage - UL
AMPHENOL PCD ELFT02460E
AMPHENOL PCD ELFT02450	90 °	Screw - Rising Cage Clamp	2	Retention Latches (Wire Side)	26.16 mm	1.03 "	0.3 in	7.62 mm	1	2	Plug Female Sockets	UL94 V-0	Polyphenylene Oxide (PPO)	12 AWG	26 AWG	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	Tin	Copper Alloy	Black	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 90° Free Hanging (In-Line)

Technical documentation and resources

No documents available
