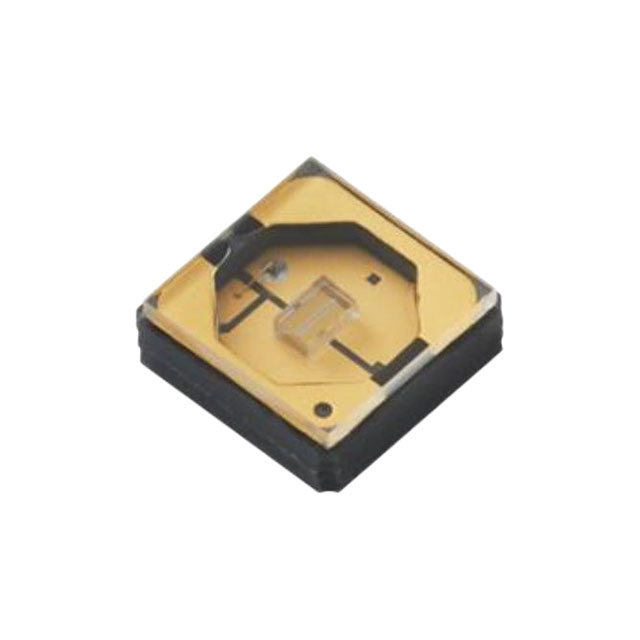

CUD5GF1B
ActiveSETi/Seoul Viosys
LED DEEP UV 255NM CA3535
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUD5GF1B
ActiveSETi/Seoul Viosys
LED DEEP UV 255NM CA3535
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUD5GF1B |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 200 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 7.5 V |
| Wavelength | 255 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 65.85 | |
| Digi-Reel® | 1 | $ 65.85 | ||
| Tape & Reel (TR) | 5000 | $ 48.48 | ||
Description
General part information
CUD5GF1 Series
Ultraviolet (UV) Emitter 255nm 7.5V 200mA 125° 1414 (3535 Metric)
