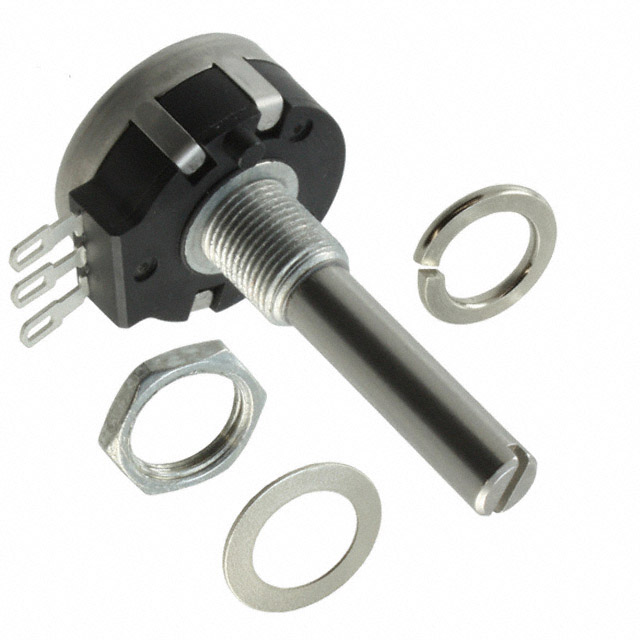

P232-DEC35BR5K

Active

TT Electronics/BI

POT 5K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P232-DEC35BR5K

Active

TT Electronics/BI

POT 5K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P232-DEC35BR5K

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	35 mm
Actuator Length [z]	1.378 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	M9 x 0.75
Features	Sealed
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	5 kOhms
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [diameter]	0.906 in
Size - Body [diameter]	23 mm
Taper	Linear
Termination Style	Solder Lug
Tolerance	10 %

P232 Series

Part	Actuator Length [z]	Actuator Length [z]	Rotation	Actuator Diameter	Actuator Diameter [diameter]	Number of Turns	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Power (Watts)	Termination Style	Number of Gangs	Adjustment Type	Resistance (Ohms)	Actuator Type	Features	Tolerance	Taper	Resistive Material	Bushing Thread	Resistance (Ohms)
TT Electronics/BI P232-DFC35AR100K	35 mm	1.378 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	300 mW	0.3 W	Solder Lug	1	User Defined	100 kOhms	Flatted	Sealed	10 %	Logarithmic	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-SEC20BR5K	20 mm	0.787 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	5 kOhms	Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-SEC35BR5K	35 mm	1.378 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	5 kOhms	Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-DEC22BR100K	22 mm	0.866 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	100 kOhms	Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-SEC20BR1MEG	20 mm	0.787 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined		Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75	1M
TT Electronics/BI P232-SEA20BR10K	20 mm	0.787 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined		Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75	10k
TT Electronics/BI P232-DEC35BR5K	35 mm	1.378 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	5 kOhms	Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-SFC20BR5K	20 mm	0.787 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	5 kOhms	Flatted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-DFC35BR5K	35 mm	1.378 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined	5 kOhms	Flatted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75
TT Electronics/BI P232-SEC22BR10K	22 mm	0.866 in	300 ░	6.35 mm	0.25 in	1	0.906 in	23 mm	0.5 W	0.5 W	Solder Lug	1	User Defined		Slotted	Sealed	10 %	Linear	Conductive Plastic	M9 x 0.75	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.28
		10	$ 10.88
		25	$ 9.67
		40	$ 8.87
		80	$ 8.06
		320	$ 6.45
		640	$ 6.25
		960	$ 5.84

Description

General part information

P232 Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Solder Lug
