842-019-558-102
ActiveEDAC Inc.

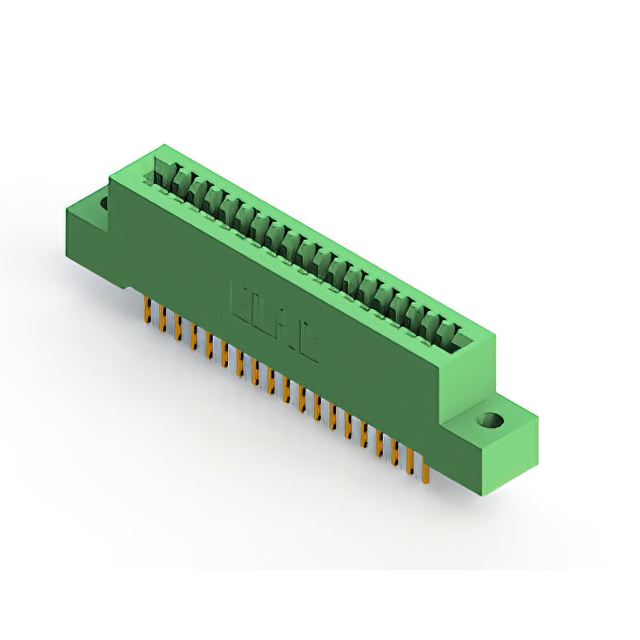

CARD EDGE CONNECTOR, 19 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-019-558-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 19 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-019-558-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-019 Series
| Part | Color | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Contact Material | Number of Positions/Bay/Row [custom] | Number of Rows | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Read Out | Contact Finish | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | Gold | Wire Wrap | Through Hole |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | Gold | Solder | Through Hole Right Angle |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Single | Gold | Wire Wrap | Through Hole | ||
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | Single | Gold | Solder Eyelet(s) | Through Hole |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Single | Gold | Solder | Through Hole | ||
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Single | Gold | Solder | Through Hole Right Angle | |||
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | Gold | Solder | Through Hole Right Angle |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Single Edge | Single | Gold | Solder | Through Hole |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | Single | Gold | Wire Wrap | Through Hole |
EDAC Inc. | Green | 19 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | 19 | 1 | 1 | 125 °C | -40 °C | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | Single | Gold | Wire Wrap | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
