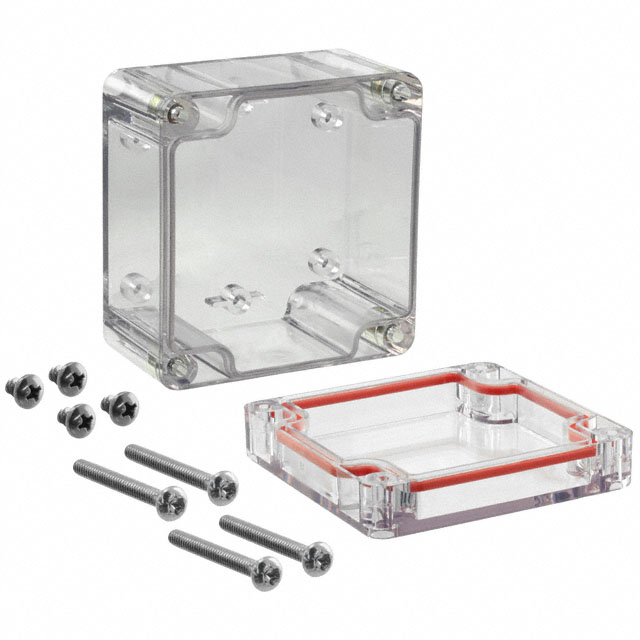

RB33P06C16C

Active

Serpac

BOX PLASTIC CLR 3.23"L X 3.15"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC CLR 3.23"L X 3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB33P06C16C

Area (L x W)	66 cm²
Area (L x W)	10.3 in²
Color	Clear
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	82.04 mm
Size / Dimension [x]	3.23 in
Size / Dimension [y]	80.01 mm
Size / Dimension [y]	3.15 in
Thickness	0.12 in
Thickness	3.05 mm

Part	Thickness	Thickness	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Height [z]	Height [z]	Color	Container Type
Serpac RB33P06C16C	0.12 in	3.05 mm	Cover Included	UL94 V-0	66 cm²	10.3 in²	Plastic Polycarbonate	82.04 mm	3.23 in	80.01 mm	3.15 in	IP67 NEMA 4	2.17 in	55.12 mm	Clear	Box
Serpac RB33P06C16B	0.12 in	3.05 mm	Cover Included	UL94 V-0	66 cm²	10.3 in²	Plastic Polycarbonate	82.04 mm	3.23 in	80.01 mm	3.15 in	IP67 NEMA 4	2.17 in	55.12 mm	Black Clear Cover/Door	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Clear Cover Included 3.230" L x 3.150" W (82.04mm x 80.01mm) X 2.170" (55.12mm)
