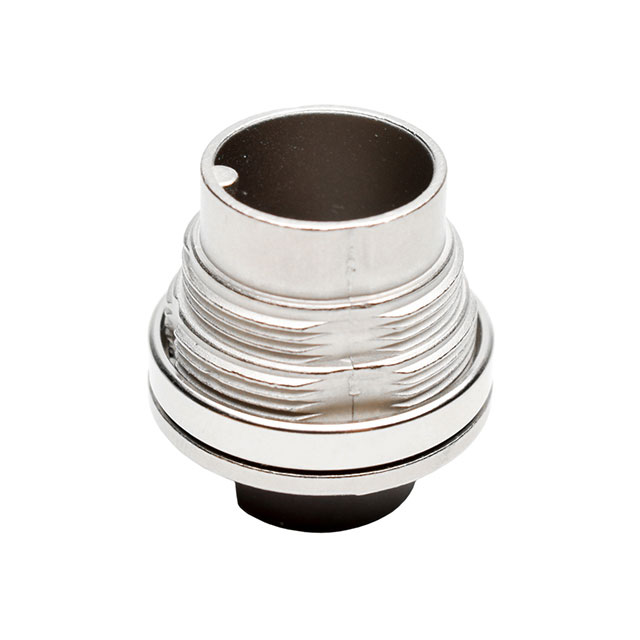

C091 11C008 000 2

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 8POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 8POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11C008 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Type	For Male Pins

Part	Mounting Feature	Contact Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shell Material	Shielding	Shell Finish	Contact Shape	Number of Positions	Connector Type	Note	Shell Size - Insert	Type	Material Flammability Rating	Housing Color	Ingress Protection	Insert Material
Amphenol Tuchel Industrial C091 11C008 000 2	Bulkhead - Front Side Nut	Crimp	1.5 mm	100 °C	-40 °C	Keyed	Die Cast	Shielded	Nickel	Circular	8	Receptacle Housing	Contacts Not Included	M16-8	For Male Pins	UL94 V-0	Silver	IP65 IP67 IP69K	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle Housing Panel Mount
