XVBC21

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL INDICATOR ACCESSORY, HARMONY XVB, BASE, COVER

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL INDICATOR ACCESSORY, HARMONY XVB, BASE, COVER

Technical Specifications

Parameters and characteristics for this part

Specification	XVBC21

Type	Connection Base with End Cover

Part	Type	Number of Stacks	Function - Lighting	Voltage - Supply	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Light Color	Termination Style	Weight	Weight
SQUARE D BY SCHNEIDER ELECTRIC XVBC23	Legend Holder
SQUARE D BY SCHNEIDER ELECTRIC XVBC2B8	Complete Unit	1	Steady	24 VAC	IP65 IP66	50 °C	-25 °C	Yellow	Screw Terminal
SQUARE D BY SCHNEIDER ELECTRIC XVBC21	Connection Base with End Cover
SQUARE D BY SCHNEIDER ELECTRIC XVBC2B6	Complete Unit	1	Steady	24 VAC	IP65 IP66	50 °C	-25 °C		Screw Terminal	0.33 lb	149.69 g
SQUARE D BY SCHNEIDER ELECTRIC XVBC22	Marker

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

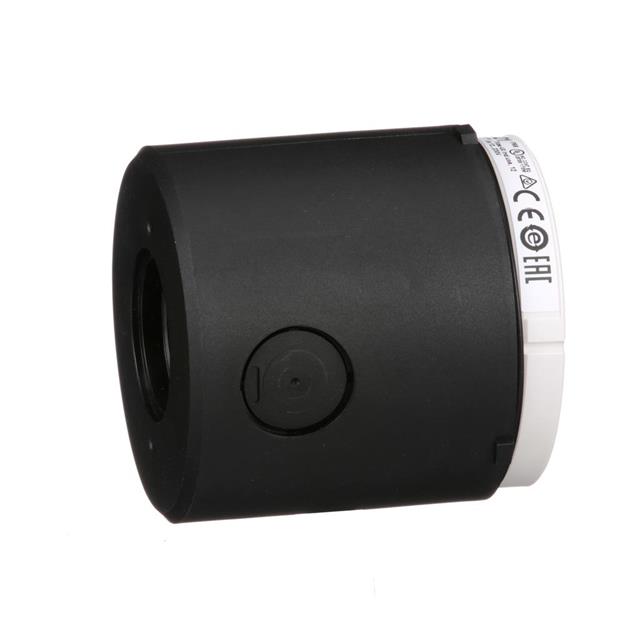

The XVBC21 is a 70mm Light Base Unit with black cover. It is made of glass reinforced polyamide base unit and polycarbonate cover unit.
