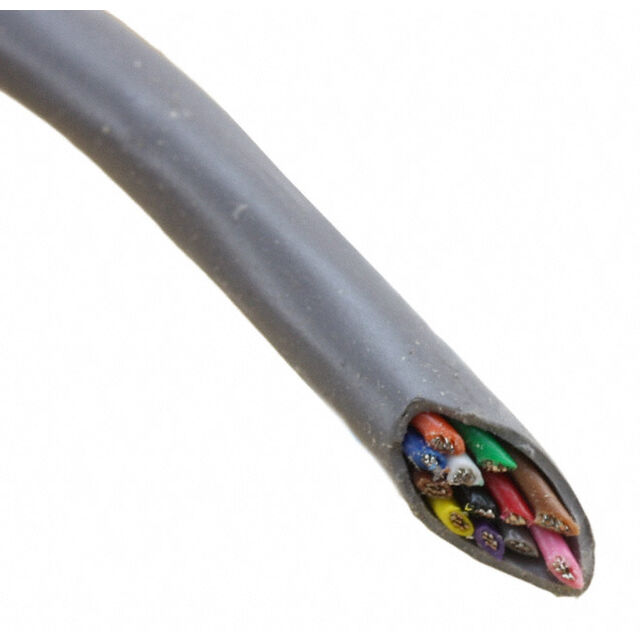

1181C SL001

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1181C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Wire Gauge	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Usage	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Material	Conductor Material	Jacket Color
ALPHA WIRE 1181C SL001	22 AWG	12	7	30 AWG	0.272 in	6.91 mm	1000 ft	304.8 m	Communication Control	Poly-Vinyl Chloride (PVC)	150 V	-20 C	80 C	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
