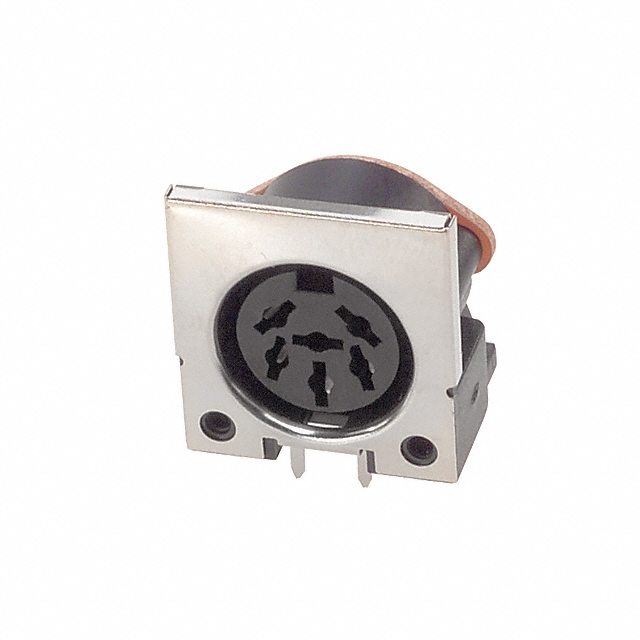

SDF-60J

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 6POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-60J

Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	DIN (240 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC

Part	Voltage Rating	Current Rating (Amps)	Fastening Type	Number of Positions	Color	Features	Primary Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Mounting Type	Termination	Contact Material	Shell Material	Shielding	Material Flammability Rating	Orientation
CUI Devices SDF-60J	100 VAC	2 A	Push-Pull	6	Black Silver	Ground	Plastic	Receptacle Female Sockets	85 °C	-40 °C	DIN (240 Degree)	Through Hole Right Angle	Solder	Brass	Polybutylene Terephthalate (PBT)	Shielded	UL94 V-0	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
