SRR0805-561K

Active

Bourns Inc.

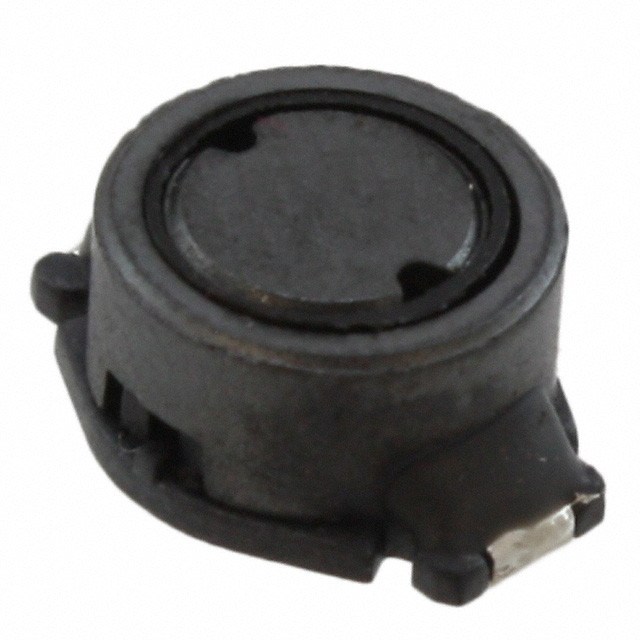

INDUCTOR,FERRITE,560UH,10+% TOL,10-% TOL,4132-CASE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRR0805-561K

Active

Bourns Inc.

INDUCTOR,FERRITE,560UH,10+% TOL,10-% TOL,4132-CASE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR0805-561K

Current - Saturation (Isat)	340 mA
Current Rating (Amps)	0.18 A
DC Resistance (DCR) [Max]	3 Ohm
Frequency - Self Resonant	3 MHz
Height - Seated (Max) [Max] [z]	4.7 mm
Height - Seated (Max) [Max] [z]	0.185 "
Inductance	560 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	796 kHz, 32
Shielding	Shielded
Size / Dimension [x]	10.5 mm
Size / Dimension [x]	0.413 in
Size / Dimension [y]	8 mm
Size / Dimension [y]	0.315 in
Tolerance	10 %
Type	Wirewound, Drum Core

SRR0805 Series

Part	Tolerance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Shielding	Mounting Type	Inductance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Frequency - Self Resonant	Current - Saturation (Isat)	Q @ Freq	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. SRR0805-5R6M	20 %	65 mOhm	1.95 A	Shielded	Surface Mount	5.6 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	40 MHz	3.2 A	7.96 MHz 20	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C
Bourns Inc. SRR0805-680K	10 %		600 mA	Shielded	Surface Mount	68 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	9 MHz	900 mA	2.52 MHz 28	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C	440 mOhm
Bourns Inc. SRR0805-561K	10 %	3 Ohm	0.18 A	Shielded	Surface Mount	560 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	3 MHz	340 mA	32 796 kHz	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C
Bourns Inc. SRR0805-2R2M	20 %	40 mOhm	2.5 A	Shielded	Surface Mount	2.2 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	75 MHz	4.9 A	7.96 MHz 18	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C
Bourns Inc. SRR0805-151K	10 %		400 mA	Shielded	Surface Mount	150 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	6.5 MHz	640 mA	39 796 kHz	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C
Bourns Inc. SRR0805-471K	10 %	2.25 Ohm	0.2 A	Shielded	Surface Mount		Nonstandard	4.7 mm	0.185 "	Ferrite	3.5 MHz	350 mA	34 796 kHz	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C
Bourns Inc. SRR0805-820K	10 %	550 mOhm	0.54 A	Shielded	Surface Mount	82 µH	Nonstandard	4.7 mm	0.185 "	Ferrite	8.5 MHz	740 mA	2.52 MHz 28	Drum Core Wirewound	10.5 mm	8 mm	0.315 in	0.413 in	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.40
Newark	Each (Supplied on Full Reel)	1000	$ 0.44
		2000	$ 0.40
		4000	$ 0.36
		6000	$ 0.35
		10000	$ 0.34

Description

General part information

SRR0805 Series

560 µH Shielded Drum Core, Wirewound Inductor 180 mA 3Ohm Max Nonstandard
