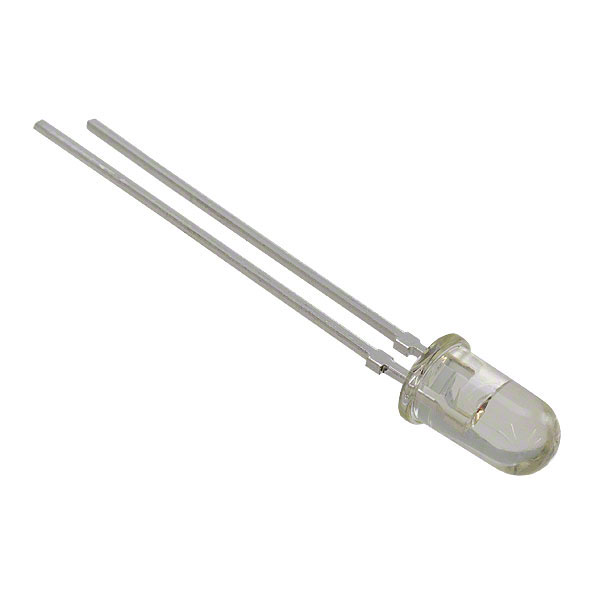

5219466F
ActiveDIALIGHT
LED YELLOW CLEAR 5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5219466F
ActiveDIALIGHT
LED YELLOW CLEAR 5MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219466F |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 8.81 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 4.83 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 140 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 24 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 583 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 0.98 | |||
| 100 | $ 0.69 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.53 | |||
| 2000 | $ 0.51 | |||
| 5000 | $ 0.48 | |||
| 10000 | $ 0.46 | |||
Description
General part information
5219466 Series
Yellow LED Indication - Discrete 2.2V Radial
