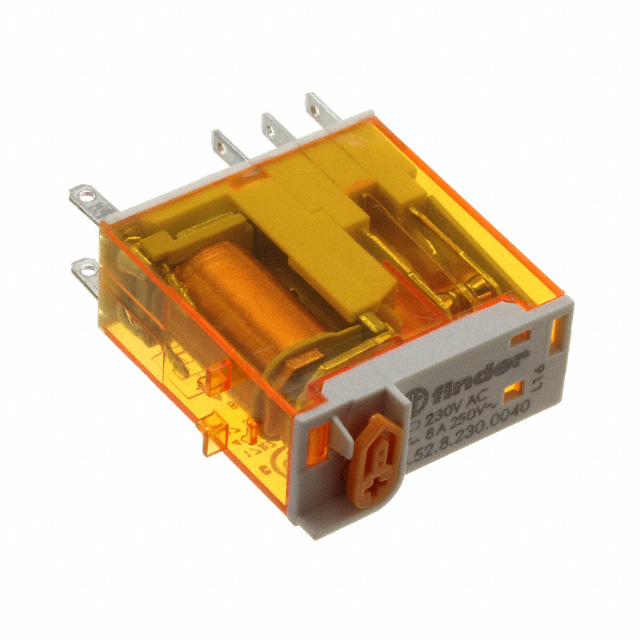

46.52.8.230.0040

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 230V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	46.52.8.230.0040

Approval Agency	cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC
Coil Current	5 mA
Coil Resistance	28 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching [Max]	3520 VA
Mounting Type	Socketable
Must Operate Voltage	184 VAC
Must Release Voltage	46 VAC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage	440 VAC

Part	Must Release Voltage	Relay Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Approval Agency	Mounting Type	Coil Current	Coil Type	Coil Voltage	Release Time	Contact Rating (Current)	Must Operate Voltage	Contact Material	Coil Resistance	Contact Form	Load - Max Switching [Max]	Features
Finder Relays, Inc. 46.52.8.230.0020	46 VAC	General Purpose	10 ms	-40 °C	70 °C	440 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	5 mA	Non Latching	230 VAC	3 ms	8 A	184 VAC	Silver Nickel (AgNi)	28 kOhms	DPDT (2 Form C)	3520 VA	Mechanical Indicator
Finder Relays, Inc. 46.52.8.230.0040	46 VAC	General Purpose	10 ms	-40 °C	70 °C	440 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	5 mA	Non Latching	230 VAC	3 ms	8 A	184 VAC	Silver Nickel (AgNi)	28 kOhms	DPDT (2 Form C)	3520 VA
Finder Relays, Inc. 46.52.8.024.0040	4.8 VAC	General Purpose	10 ms	-40 °C	70 °C	440 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	45 mA	Non Latching	24 VAC	3 ms	8 A	19.2 VAC	Silver Nickel (AgNi)	533.3 Ohms	DPDT (2 Form C)	3520 VA
Finder Relays, Inc. 46.52.8.240.0040	48 VAC	General Purpose	10 ms	-40 °C	70 °C	440 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	4.1 mA	Non Latching	240 VAC	3 ms	8 A	192 VAC	Silver Nickel (AgNi)	31.5 kOhms	DPDT (2 Form C)	3520 VA
Finder Relays, Inc. 46.52.8.240.0054	48 VAC	General Purpose	10 ms	-40 °C	70 °C	440 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Socketable	4.1 mA	Non Latching	240 VAC	3 ms	8 A	192 VAC	Silver Nickel (AgNi)	31.5 kOhms	DPDT (2 Form C)	3520 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil Socketable
