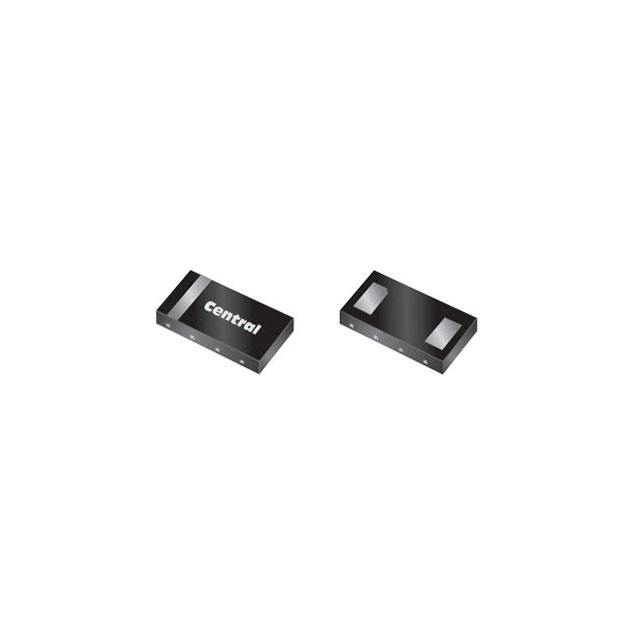

CMJDH100 TR

Active

Central Semiconductor Corp

50V,10MA SURFACE MOUNT DIODE-CUR

Search across all available documentation for this part.

Active

Central Semiconductor Corp

50V,10MA SURFACE MOUNT DIODE-CUR

Technical Specifications

Parameters and characteristics for this part

Specification	CMJDH100 TR

Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	2-SMD, No Lead
Power - Max [Max]	580 mW
Regulator Current (Max) [Max]	12 mA
Supplier Device Package	DFN123F
Voltage - Anode - Cathode (Vak)(Max) [Max]	50 V
Voltage - Limiting (Max) [Max]	3.5 V

Part	Voltage - Limiting (Max) [Max]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Supplier Device Package	Regulator Current (Max) [Max]	Voltage - Anode - Cathode (Vak)(Max) [Max]
Central Semiconductor Corp CMJDH100 TR	3.5 V	Surface Mount	2-SMD No Lead	150 °C	-65 °C	580 mW	DFN123F	12 mA	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50V,10MA SURFACE MOUNT DIODE-CUR

Technical documentation and resources

No documents available
