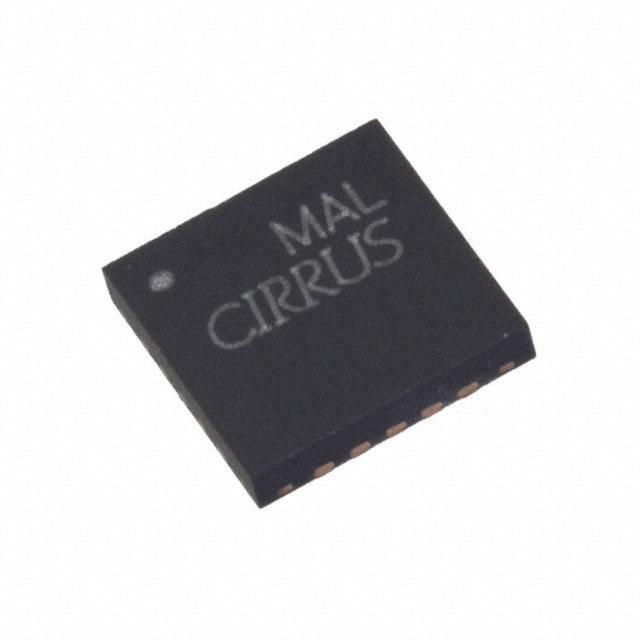

CS8421-CNZ

Obsolete

Cirrus Logic Inc.

IC SAMPLE RATE CONVERTER 20QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC SAMPLE RATE CONVERTER 20QFN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case [y]	Package / Case	Package / Case [x]	Applications	Function	Interface	Specifications [Min]	Specifications [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels [custom]
Cirrus Logic Inc. CS8421-CZZR	Surface Mount	4.4 mm	20-TSSOP	0.173 in	Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-TSSOP	-10 °C	70 °C	2.38 V	2.62 V	2
Cirrus Logic Inc. CS8421-CNZ	Surface Mount		20-VQFN Exposed Pad		Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-QFN (5x5)	-10 °C	70 °C	2.38 V	2.62 V	2
Cirrus Logic Inc. CS8421-EZZ	Surface Mount	4.4 mm	20-TSSOP	0.173 in	Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-TSSOP	-40 °C	105 °C	2.38 V	2.62 V	2
Cirrus Logic Inc. CS8421-DZZ	Surface Mount	4.4 mm	20-TSSOP	0.173 in	Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-TSSOP	-40 °C	85 °C	2.38 V	2.62 V	2
Cirrus Logic Inc. CS8421-EZZR	Surface Mount	4.4 mm	20-TSSOP	0.173 in	Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-TSSOP	-40 °C	105 °C	2.38 V	2.62 V	2
Cirrus Logic Inc. CS8421-CZZ	Surface Mount	4.4 mm	20-TSSOP	0.173 in	Digital Audio Interfacing	Sample Rate Converter	Serial	53 kHz	211 kHz	20-TSSOP	-10 °C	70 °C	2.38 V	2.62 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Audio Sample Rate Converter 2 Channel 20-QFN (5x5)
