TS2P5F20

Active

Switchcraft Inc.

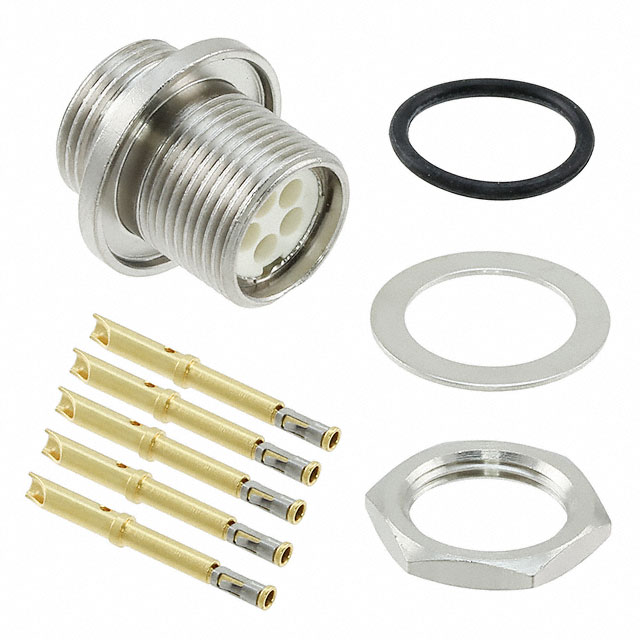

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P5F20

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Part	Mounting Feature	Orientation	Shell Finish	Termination	Connector Type	Shell Material	Primary Material	Contact Material	Insert Material	Applications	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating	Color	Shielding
Switchcraft Inc. TS2P5F20	Bulkhead - Rear Side Nut	Keyed	Electroless Nickel	Crimp Solder Cup	Receptacle Female Sockets	Copper Alloy	Metal	Copper Alloy	Liquid Crystal Polymer (LCP)	Agriculture Audio General Medical Testing Equipment & Measurement	Gold	135 °C	-40 °C	IP66 IP67 IP68	125 VAC	Silver	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
