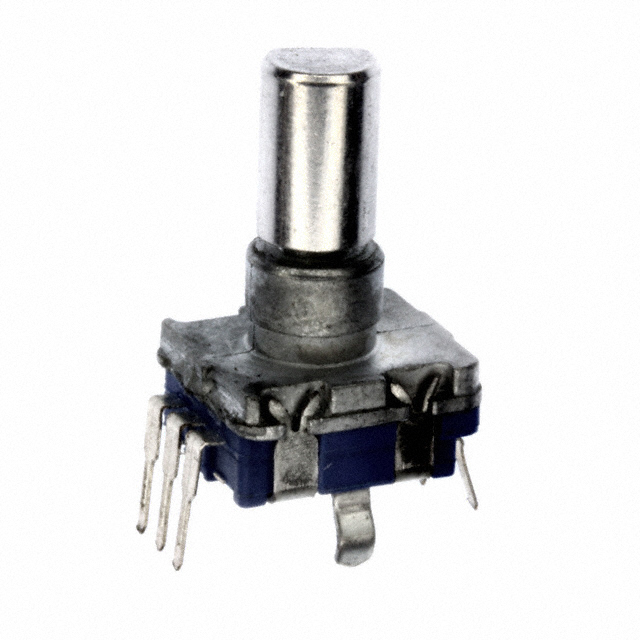

ACZ11BR4E-15FD1-20C

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER INCREMENT 20PPR

Technical Specifications

Parameters and characteristics for this part

Specification	ACZ11BR4E-15FD1-20C

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Incremental
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	20
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Pulses per Revolution	Rotational Life (Cycles Min) [Min]	Orientation	Actuator Type [diameter]	Actuator Type	Encoder Type	Termination Style	Output Type
CUI Devices ACZ11BR4E-20KQD1-12C	12 pulses per revolution	30K	Vertical	6 mm	Knurled End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-20FD1-12C	12 pulses per revolution	30K	Vertical	6 mm	Flatted End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15KQA1-12C	12 pulses per revolution	30K	Right Angle	6 mm	Knurled End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15FA1-12C	12 pulses per revolution	30K	Right Angle	6 mm	Flatted End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15FD1-20C	20	30K	Vertical	6 mm	Flatted End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15FA1-20C	20	30K	Right Angle	6 mm	Flatted End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15FD1-12C	12 pulses per revolution	30K	Vertical	6 mm	Flatted End	Incremental	PC Pin	Quadrature (Incremental)
CUI Devices ACZ11BR4E-15KQD1-12C	12 pulses per revolution	30K	Vertical	6 mm	Knurled End	Incremental	PC Pin	Quadrature (Incremental)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental 20 Quadrature (Incremental) Vertical
