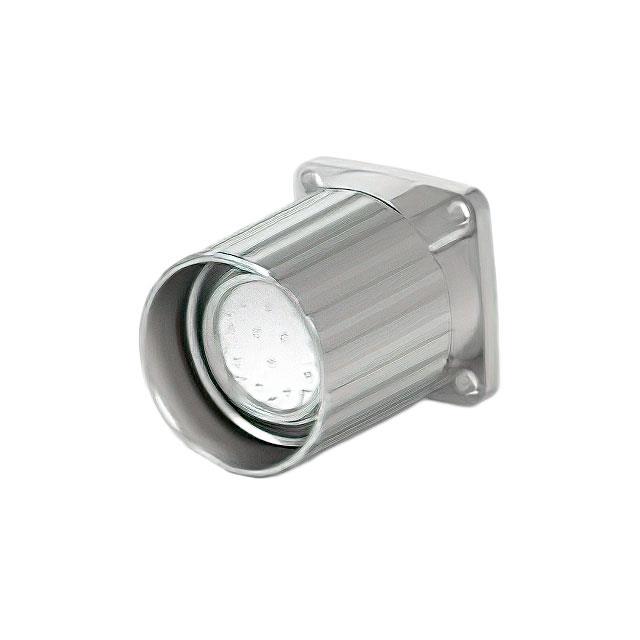

ADA035N00000151000

Active

TE Intercontec

CONN PLG HSG FMALE 17POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 17POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	ADA035N00000151000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

Part	Includes	Contact Shape	Ingress Protection	Features	Shell Finish	Mounting Feature	Insert Material	Note	Shell Material	Shielding	Housing Color	Material Flammability Rating	Type	Fastening Type	Connector Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]
TE Intercontec ADA035N00000151000	1 Connector 1 O-Ring	Circular	IP66/IP67	Coupling Nut	Nickel	Flange	Polybutylene Terephthalate (PBT)	Contacts Not Included	Zinc Die Cast	Unshielded	Silver	UL94 V-0	For Female Sockets	Push-Twist	Plug Housing	Keyed	-20 C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Plug Housing Panel Mount Coupling Nut
