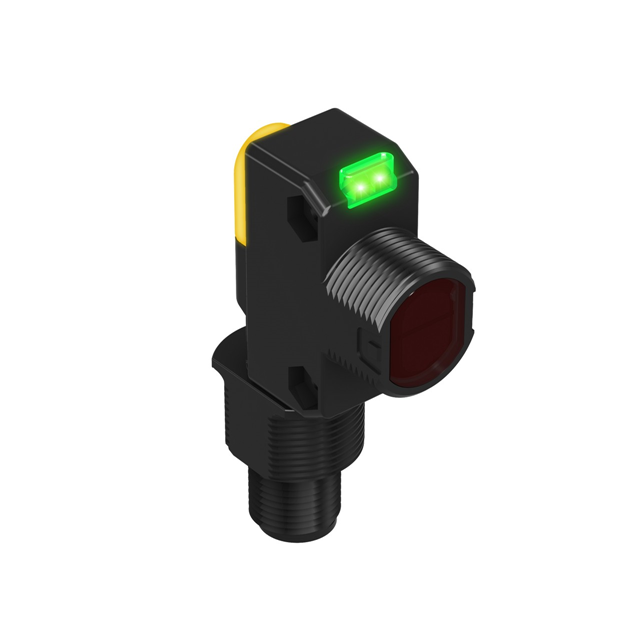

DS18VP6LPQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, 3.5M, 100MA, PNP OUTPUT, 10V TO 30V, DS18 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, 3.5M, 100MA, PNP OUTPUT, 10V TO 30V, DS18 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Output Configuration	Ingress Protection	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Response Time
BANNER ENGINEERING DS18VP6LPQ	Connector M8	Polarized Retroreflective	-20 C	70 °C	30 VDC	10 VDC	Red (660nm)	PNP - Dark-ON/Light-ON	NEMA 6 IEC IP67	11.48 ft	350 cm
BANNER ENGINEERING DS18VP6FF100	Cable	Background Suppression	-20 C	70 °C	30 VDC	10 VDC	Red (660nm)	PNP	NEMA 6 IEC IP67	3.937 in	100 mm	78.74 in	2 m
BANNER ENGINEERING DS18VP6LPQ8	Connector	Polarized Retroreflective	-20 C	70 °C	30 VDC	10 VDC	Red LED	PNP - Dark-ON/Light-ON	IP67 NEMA 6P	137.795 in	350 cm			2 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.00
Newark	Each	1	$ 109.00

General part information

DS18VP6LPQ is a DS18 series miniature self-contained photoelectric sensor in a universal housing.
