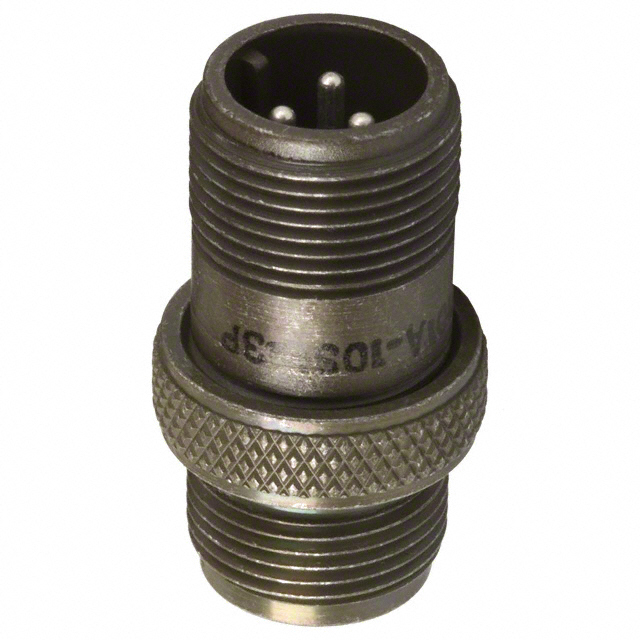

97-3101A-10SL-3P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 3P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97-3101A-10SL-3P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 3P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3101A-10SL-3P |
|---|---|
| Applications | Industrial, Automotive |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Backshell |
| Insert Material | Diallyl Phthalate (DAP) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.46 | |
| 10 | $ 19.67 | |||
| 25 | $ 18.82 | |||
| 50 | $ 18.21 | |||
| 100 | $ 17.60 | |||
| 250 | $ 16.63 | |||
| 500 | $ 16.15 | |||
Description
General part information
97-3101A10 Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
