341-029-522-102

Active

EDAC Inc.

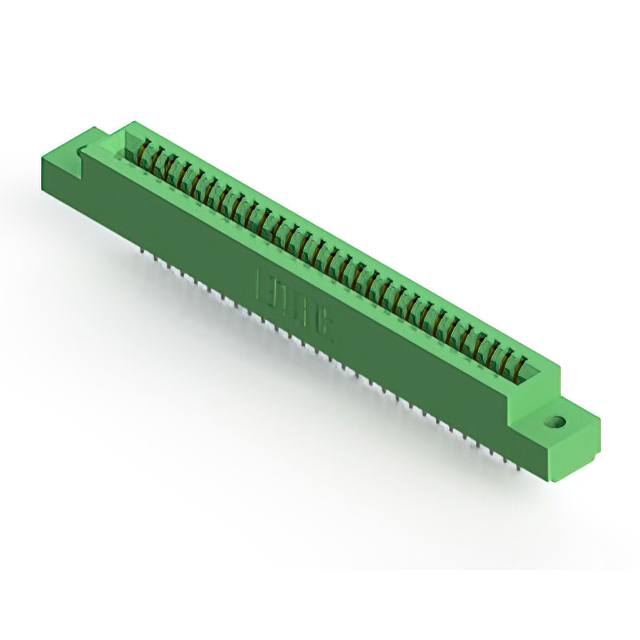

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-029-522-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-029-522-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	29
Number of Positions/Bay/Row	29
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-029 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Termination Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Type	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material - Insulation	Contact Finish	Flange Feature	Number of Positions/Bay/Row	Gender	Color	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-029-500-107	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder Eyelet(s)	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Diallyl Phthalate (DAP)	Gold	Flush Mount M3 Threaded Insert Top Opening	29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-522-102	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	Flush Mount Top Opening Unthreaded	29	Female	Green	Through Hole	Semi Bellows	3.25 mm	0.128 "
EDAC Inc. 341-029-521-107	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	Flush Mount M3 Threaded Insert Top Opening	29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-520-107	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	Flush Mount M3 Threaded Insert Top Opening	29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-520-108	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	4-40 Flush Mount Threaded Insert Top Opening	29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-524-101	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold		29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-521-108	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	4-40 Flush Mount Threaded Insert Top Opening	29	Female	Green	Through Hole	Semi Bellows
EDAC Inc. 341-029-500-103	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder Eyelet(s)	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Diallyl Phthalate (DAP)	Gold	Floating Bobbin Flush Mount	29	Female	Green	Through Hole	Semi Bellows	2.95 mm	0.116 in
EDAC Inc. 341-029-524-104	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold	Flush Mount Top Opening Unthreaded	29	Female	Green	Through Hole	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 341-029-522-101	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	29	10 Áin	0.25 Ám	Single	Non Specified - Single Edge	Solder	2.54 mm	0.1 in	-40 °C	105 ░C	Copper Alloy	Polyester Thermoplastic	Gold		29	Female	Green	Through Hole	Semi Bellows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.20
Newark	Each	1	$ 14.26
		100	$ 11.54
		250	$ 9.99
		500	$ 9.50
		1000	$ 8.27

Description

General part information

341-029 Series

29 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
