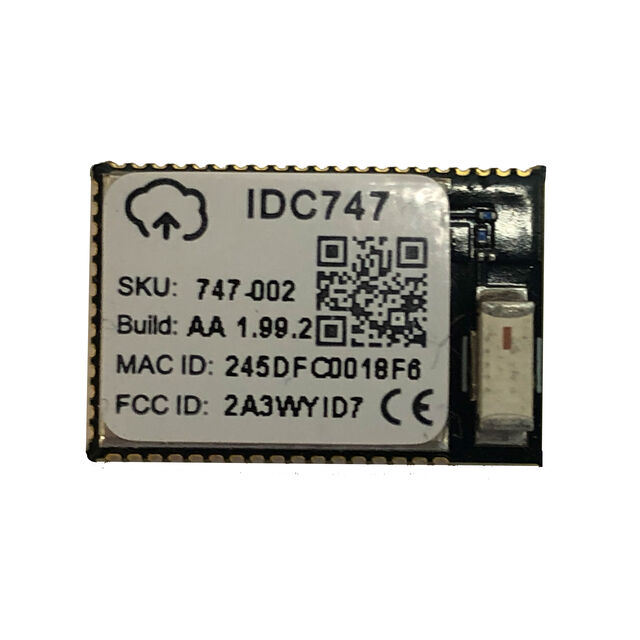

IDC747-1
IOT747
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IDC747-1
IOT747
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IDC747-1 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Modulation | DQPSK, GFSK, DPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 51-SMD Module |
| Power - Output | 13 dBm |
| Protocol | Bluetooth v5.2 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, AIO, I2S, USB, UART, GPIO, PCM |
| Voltage - Supply [Max] | 4.7 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 25.81 | |
| Digi-Reel® | 1 | $ 25.81 | ||
| Tape & Reel (TR) | 1000 | $ 14.50 | ||
Description
General part information
IDC747 Series
Bluetooth Bluetooth v5.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
