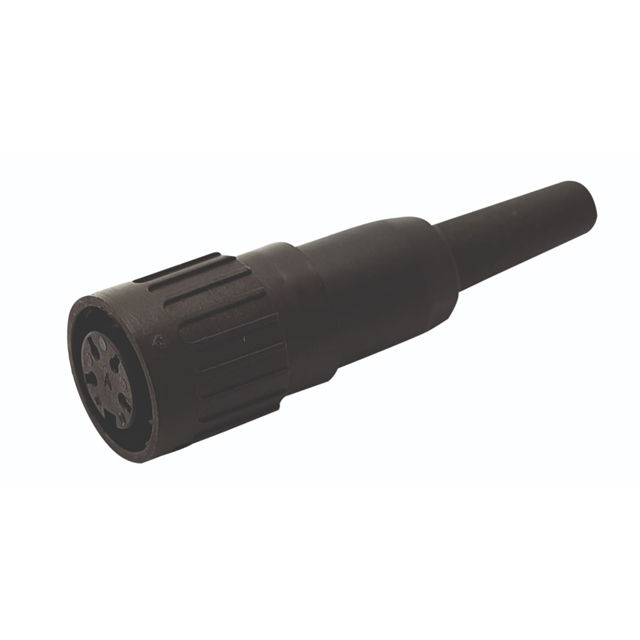

T 3375 501

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Connector Type	Orientation	Shell Material	Contact Finish - Mating	Mounting Type	Features	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Shell Size - Insert	Material Flammability Rating	Note	Contact Shape	Contact Type	Shielding	Type	Housing Color	Insert Material	Contact Size	Shell Finish	Color
Amphenol Tuchel Industrial T 3375 991	Plastic	Female Sockets Plug	Keyed	Plastic	Silver	Free Hanging (In-Line)	Strain Relief	Bayonet Lock	250 VDC	100 °C	-40 °C	IP40	7 A	M16-5
Amphenol Tuchel Industrial T 3375 551		Plug Housing	Keyed	Plastic		Free Hanging (In-Line)	Cable Clamp Coupling Nut Strain Relief	Bayonet Lock		100 °C	-40 °C	IP40		M16-5	UL94 V-0	Contacts Not Included	Circular	Crimp	Unshielded	For Female Sockets	Black	Thermoplastic	1.5 mm
Amphenol Tuchel Industrial T 3375 951		Plug Housing	Keyed	Plastic		Free Hanging (In-Line)	Coupling Nut Strain Relief	Bayonet Lock		100 °C	-40 °C	IP40		M16-5	UL94 V-0	Contacts Not Included	Circular	Crimp	Unshielded	For Female Sockets	Black	Thermoplastic	1.5 mm
Amphenol Tuchel Industrial T 3375 501	Plastic	Female Sockets Plug	Keyed	Plastic	Silver	Free Hanging (In-Line)	Strain Relief	Bayonet Lock	250 VDC	100 °C	-40 °C	IP40	7 A	M16-5
Amphenol Tuchel Industrial T 3375 005	Metal	Female Sockets Plug	Keyed	Die Cast	Silver	Free Hanging (In-Line) Right Angle	Strain Relief	Bayonet Lock	250 VDC	100 °C	-40 °C	IP40	7 A	M16-5										Nickel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
