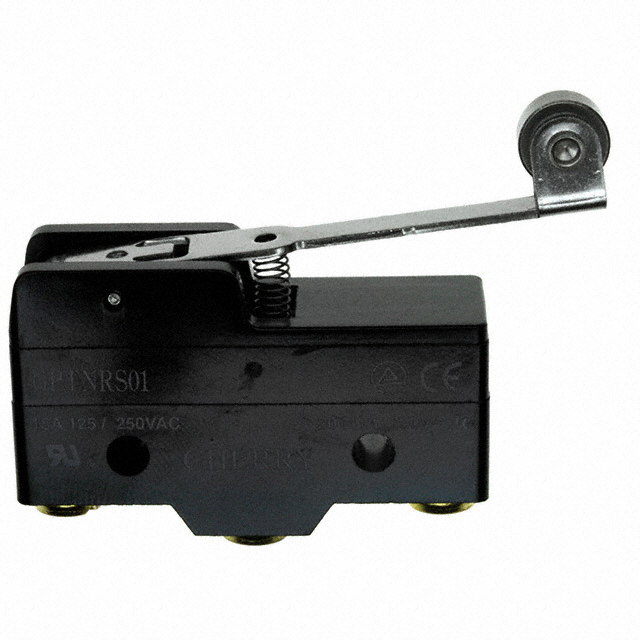

GPTCRS01

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Switch Function	Operating Force	Circuit	Termination Style	Mounting Type	Mechanical Life	Voltage Rating - AC	Release Force	Pretravel	Pretravel	Differential Travel	Differential Travel	Operating Position	Operating Position	Current Rating (Amps)	Actuator Type
ZF Electronics GPTCRS01	4 mm	0.158 in	On-Mom	99 gf	SPDT	Screw Terminal	Chassis Mount	20000000 Cycles	125 V	23 gf	7.14 mm	0.281 in	1 mm	0.04 in	29.4 mm	1.156 "	15 A	Lever Roller
ZF Electronics GPTCRS11	4 mm	0.158 in	On-Mom	99 gf	SPDT	Screw Terminal	Chassis Mount	20000000 Cycles	125 V	23 gf	7.14 mm	0.281 in	1 mm	0.04 in	29.4 mm	1.156 "	15 A	Lever Roller

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 9.32

General part information

Switch SPDT Chassis Mount
