SA05-11SRWA

Obsolete

Kingbright

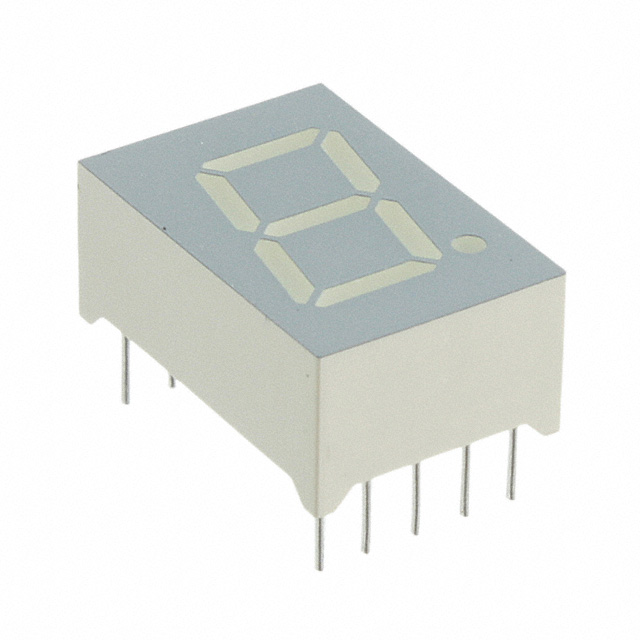

DISPLAY 7-SEG 0.5" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA05-11SRWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	12.7 mm
Digit/Alpha Size	0.5 in
Display Type	7-Segment
Millicandela Rating	34 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	660 nm

SA05-11 Series

Part	Color	Wavelength - Peak	Common Pin	Millicandela Rating	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Display Type	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Current - Test
Kingbright SA05-11SYKWA	Yellow	590 nm	Common Anode	120 mcd	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	0.6 in	15.24 mm	10-DIP	1	7-Segment	2 V	75 mw	12.7 mm	0.5 in	20 mA
Kingbright SA05-11GWA	Green	565 nm	Common Anode	10 mcd	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	0.6 in	15.24 mm	10-DIP	1	7-Segment	2.2 V	62.5 mW	12.7 mm	0.5 in	20 mA
Kingbright SA05-11SRWA	Red	660 nm	Common Anode	34 mcd	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	0.6 in	15.24 mm	10-DIP	1	7-Segment	1.85 V	75 mw	12.7 mm	0.5 in	20 mA
Kingbright SA05-11SURKWA	Red	645 nm	Common Anode	69 mcd	0.315 "	0.5 in	0.748 in	12.7 mm	8 mm	19 mm	0.6 in	15.24 mm	10-DIP	1	7-Segment	1.95 V	75 mw	12.7 mm	0.5 in	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SA05-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
