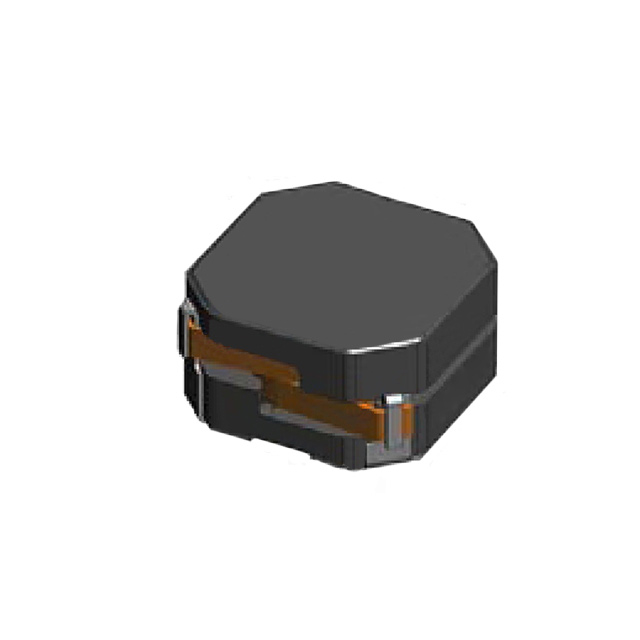

1217AS-H-2R2N=P3

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 8.7A 9.9MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DEM8045C Spec

1217AS-H-2R2N=P3

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 8.7A 9.9MOHM SMD

Deep-Dive with AI

DocumentsDatasheet DEM8045C Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1217AS-H-2R2N=P3

Current - Saturation (Isat)	9.3 A
Current Rating (Amps)	8.7 A
DC Resistance (DCR) [Max]	9.9 mOhm
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.315 "
Size / Dimension [x]	8 mm
Size / Dimension [y]	0.315 in
Size / Dimension [y]	8 mm
Tolerance	30 %
Type	Wirewound, Drum Core

1217AS Series

Part	DC Resistance (DCR) [Max]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max)	Shielding	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Mounting Type	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. 1217AS-H-220M=P3	93.6 mOhm	22 µH	0.177 "	4.5 mm	Shielded	20 %	2.4 A	2.9 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-6R8N=P3	27.6 mOhm	6.8 µH	0.177 "	4.5 mm	Shielded	30 %	4.8 A	5.2 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound	85 °C	-40 °C
Murata Power Solutions Inc. 1217AS-H-8R2M=P3	33.6 mOhm	8.2 µH	0.177 "	4.5 mm	Shielded	20 %	4.5 A	4.8 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound	85 °C	-40 °C
Murata Power Solutions Inc. 1217AS-H-3R3N=P3		3.3 µH	0.177 "	4.5 mm	Shielded	30 %	6.8 A	7.7 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-330M=P3	132 mOhm	33 µH	0.177 "	4.5 mm	Shielded	20 %	2.2 A	2.3 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-100M=P3	39.6 mOhm	10 µH	0.177 "	4.5 mm	Shielded	20 %	3.9 A	4.3 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-2R2N=P3	9.9 mOhm	2.2 µH	0.177 "	4.5 mm	Shielded	30 %	8.7 A	9.3 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-470M=P3	204 mOhm	47 µH	0.177 "	4.5 mm	Shielded	20 %	1.8 A	2.1 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound
Murata Power Solutions Inc. 1217AS-H-150M=P3	52.8 mOhm	15 µH	0.177 "	4.5 mm	Shielded	20 %	3.5 A	3.3 A	Ferrite	0.315 in	8 mm	0.315 "	8 mm	100 kHz	Surface Mount	Nonstandard	Drum Core Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.85
		10	$ 0.73
		25	$ 0.67
		50	$ 0.61
		100	$ 0.54
		250	$ 0.51
		500	$ 0.44
	Digi-Reel®	1	$ 0.85
		10	$ 0.73
		25	$ 0.67
		50	$ 0.61
		100	$ 0.54
		250	$ 0.51
		500	$ 0.44
	Tape & Reel (TR)	1000	$ 0.39
		3000	$ 0.38
		5000	$ 0.36
		10000	$ 0.35
		25000	$ 0.34

Description

General part information

1217AS Series

2.2 µH Shielded Drum Core, Wirewound Inductor 8.7 A 9.9mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

DEM8045C Spec

Datasheet
