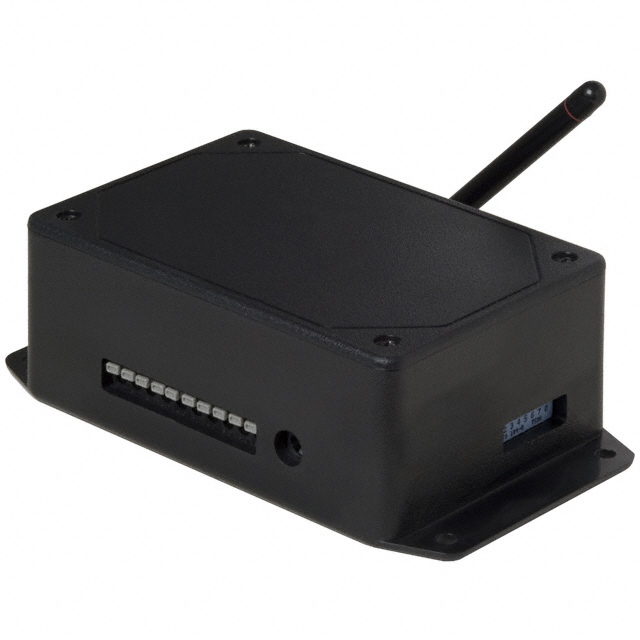

FCTN-RLY4-433-2

Obsolete

TE Connectivity Linx

MODULE 4 RELAY RECEIVER 433MHZ

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

MODULE 4 RELAY RECEIVER 433MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	FCTN-RLY4-433-2

Applications	Garage Opener, General Remote Control, RKE
Data Rate (Max)	1.2 kbps
Features	Dual Power Inputs, 4 Latched Outputs
Frequency	433 MHz
Function	Receiver, Relay
Interface	Receiver, Latched Output
Modulation or Protocol	ASK, OOK
Sensitivity	-112 dBm
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	5 V

Part	Frequency	Sensitivity	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation or Protocol	Interface	Function	Applications	Data Rate (Max)
TE Connectivity Linx FCTN-RLY4-418-2	418 MHz	-112 dBm	4 Positions	30 VDC	7 V	OOK	Latched Output Receiver	Receiver Relay	General Purpose
TE Connectivity Linx FCTN-RLY4XX-433-MOM	433 MHz							Receiver Relay
TE Connectivity Linx FCTN-RLY4-315-2	315 MHz	-112 dBm	4 Latched Outputs Dual Power Inputs	16 V	5 V	ASK OOK	Latched Output Receiver	Receiver Relay	Garage Opener General Remote Control RKE	1.2 kbps
TE Connectivity Linx FCTN-RLY4-433-2	433 MHz	-112 dBm	4 Latched Outputs Dual Power Inputs	16 V	5 V	ASK OOK	Latched Output Receiver	Receiver Relay	Garage Opener General Remote Control RKE	1.2 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Receiver, Relay 433MHz ASK, OOK Receiver, Latched Output 1.2kbps
