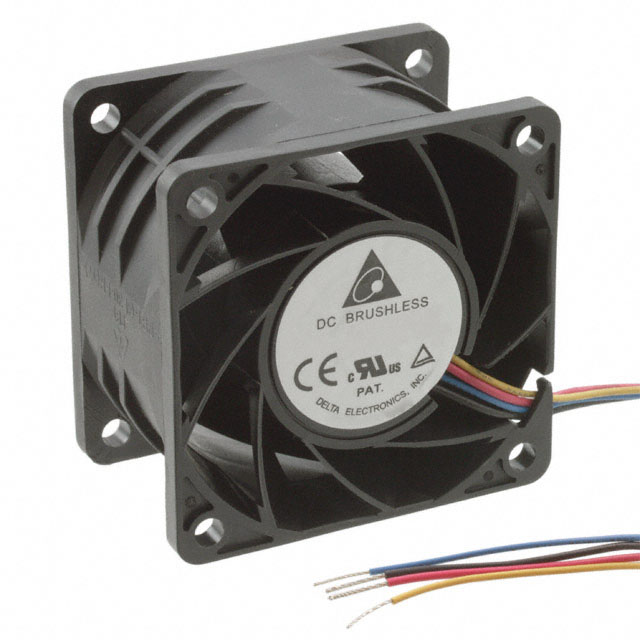

PFR0612XHE-SP00

Active

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

PFR0612XHE-SP00

Active

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFR0612XHE-SP00

Air Flow	2.13 mł/min
Air Flow	76.2 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	2.3 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	27.6 W
RPM	16500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	3.185 in H2O
Static Pressure	793.4 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

PFR0612 Series

Part	Material - Frame	Fan Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Air Flow	Air Flow	Weight	Weight	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Termination	Power (Watts)	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Material - Blade	Width [y]	RPM	Static Pressure	Static Pressure	Noise
Delta Electronics PFR0612XHE-F00	Plastic	Tubeaxial	60 mm	60 mm	12 VDC	2.13 mł/min	76.2 CFM	130.18 g	0.287 lb	70000 Hrs	13.2 VDC	7 V	Ball	3 Wire Leads	27.6 W	Locked Rotor Protection Speed Sensor (Tach)	2.3 A	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Plastic	38 mm	16500 RPM	3.185 in H2O	793.4 Pa
Delta Electronics PFR0612XHE-SP00	Plastic	Tubeaxial	60 mm	60 mm	12 VDC	2.13 mł/min	76.2 CFM	130.18 g	0.287 lb	70000 Hrs	13.2 VDC	7 V	Ball	4 Wire Leads	27.6 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.3 A	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Plastic	38 mm	16500 RPM	3.185 in H2O	793.4 Pa
Delta Electronics PFR0612DHE-SP00	Plastic	Tubeaxial	60 mm	60 mm	12 VDC	1.85 m³/min	66 CFM	130.18 g	0.287 lb	70000 Hrs	13.2 VDC	7 V	Ball	4 Wire Leads	19.2 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.6 A	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Plastic	38 mm	14500 RPM	2.502 in H2O	623.2 Pa	63.3 dB(A)
Delta Electronics PFR0612DHE-F00	Plastic	Tubeaxial	60 mm	60 mm	12 VDC	1.85 m³/min	66 CFM	130.18 g	0.287 lb	70000 Hrs	13.2 VDC	7 V	Ball	3 Wire Leads	19.2 W	Locked Rotor Protection Speed Sensor (Tach)	1.6 A	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Plastic	38 mm	14500 RPM	2.502 in H2O	623.2 Pa	63.3 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.07
		10	$ 28.91
		25	$ 26.02
		50	$ 23.85
		120	$ 22.40
		360	$ 19.51

Description

General part information

PFR0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 76.2 CFM (2.13m³/min) 4 Wire Leads
