MS3102E24-2P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

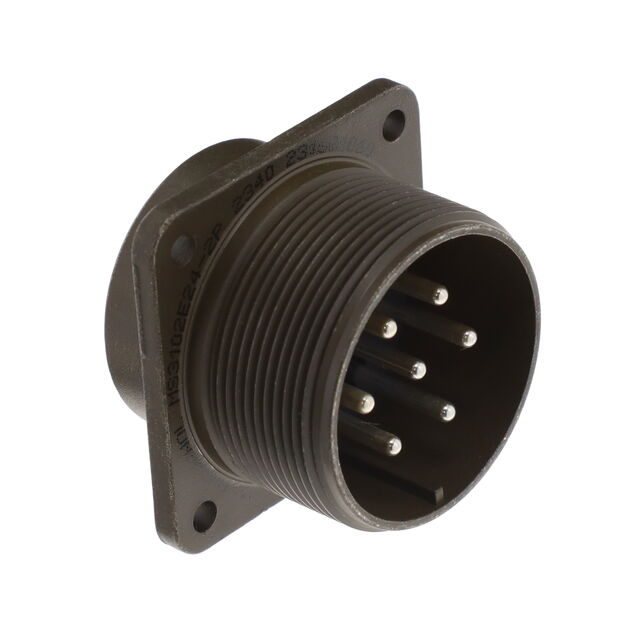

MS3102E24-2P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E24-2P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-2
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3102E24 Series

Part	Contact Material	Primary Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Shell Size - Insert	Insert Material	Ingress Protection	Color	Applications	Qualification	Orientation	Shielding	Shell Material	Current Rating (Amps)	Grade	Connector Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Voltage Rating
Amphenol Industrial Operations MS3102E24-12P	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-12	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-DTL-5015	N	Unshielded	Aluminum Alloy	23 A 80 A	Military	Male Pins Receptacle
Amphenol Industrial Operations MS3102E24-9S	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-9	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-5015	N	Unshielded	Aluminum Alloy			Receptacle Female Sockets	2	34.93 mm	1.375 in
Amphenol Industrial Operations MS3102E24-3P
Amphenol Industrial Operations MS3102E24-24P	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver		Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-5015	N	Unshielded	Aluminum Alloy			Male Pins Receptacle		34.93 mm	1.375 in	24	24	16
Amphenol Industrial Operations MS3102E24-6S	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-6	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-DTL-5015	N	Unshielded	Aluminum Alloy	23 A	Military	Receptacle Female Sockets	8
Amphenol Industrial Operations MS3102E24-2P	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-2	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-DTL-5015	N	Unshielded	Aluminum Alloy	23 A	Military	Male Pins Receptacle	7						900 VAC 1250 VDC
Amphenol Industrial Operations MS3102E24-24S	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver		Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-5015	N	Unshielded	Aluminum Alloy			Receptacle Female Sockets		34.93 mm	1.375 in	24	24	16
Amphenol Industrial Operations MS3102E24-6SX
Amphenol Industrial Operations MS3102E24-7P	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-7	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-DTL-5015	N	Unshielded	Aluminum Alloy			Male Pins Receptacle		34.93 mm	1.375 in			16
Amphenol Industrial Operations MS3102E24-9P	Copper Alloy	Metal	Flange	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	24-9	Neoprene	Environment Resistant	Olive Drab	Marine Military	MIL-DTL-5015	N	Unshielded	Aluminum Alloy			Male Pins Receptacle	2	34.93 mm	1.375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.37
		10	$ 17.84
		25	$ 17.06
		50	$ 16.51
		100	$ 15.96
		250	$ 15.08
		500	$ 14.64

Description

General part information

MS3102E24 Series

7 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources
