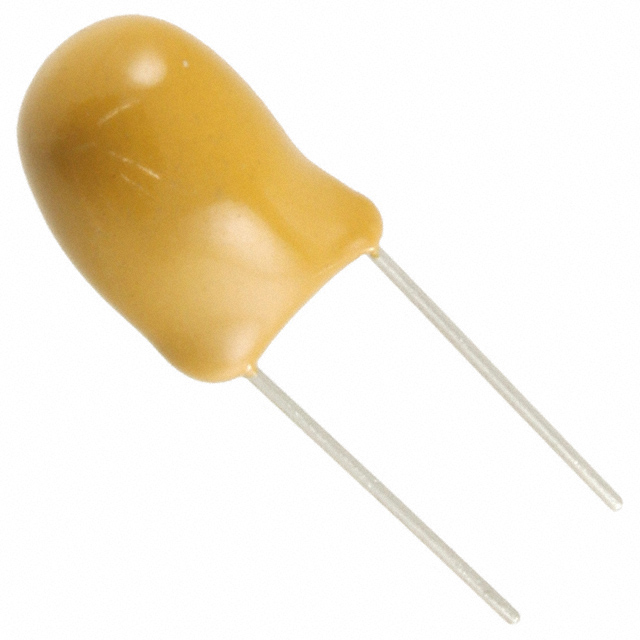

T350K226K035AS

Active

KEMET

CAP TANT 22UF 10% 35V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 22UF 10% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T350K226K035AS

Capacitance	22 µF
ESR (Equivalent Series Resistance)	1.3 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.532 "
Height - Seated (Max) [Max] [z]	13.5 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	K
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.35 in
Size / Dimension [diameter]	8.9 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Features	ESR (Equivalent Series Resistance)	Type	Package / Case	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Spacing	Lead Spacing	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max)
KEMET T350K476K025AT	0.35 in	8.9 mm	Through Hole	General Purpose	1 Ohms	Conformal Coated	Radial	K	-55 °C	125 °C	10 %	5.08 mm	0.2 in	25 VDC	0.532 "	13.5 mm	47 µF
KEMET T350K476M025AT	0.35 in	8.9 mm	Through Hole	General Purpose		Conformal Coated	Radial	K	-55 °C	125 °C	20 %	5.08 mm	0.2 in	25 VDC	0.532 "	13.5 mm	47 µF
KEMET T350K157M010AT	0.35 in	8.9 mm	Through Hole	General Purpose	800 mOhm	Conformal Coated	Radial	K	-55 °C	125 °C	20 %	5.08 mm	0.2 in	10 V	0.531 "		150 µF	13.5 mm
KEMET T350K686K016AS	0.35 in	8.9 mm	Through Hole	General Purpose	1 Ohms	Conformal Coated	Radial	K	-55 °C	125 °C	10 %	5.08 mm	0.2 in	16 V	0.532 "	13.5 mm	68 µF
KEMET T350K226K035AS	0.35 in	8.9 mm	Through Hole	General Purpose	1.3 Ohm	Conformal Coated	Radial	K	-55 °C	125 °C	10 %	5.08 mm	0.2 in	35 V	0.532 "	13.5 mm	22 µF
KEMET T350K106K050AS	0.35 in	8.9 mm	Through Hole	General Purpose	1.6 Ohm	Conformal Coated	Radial	K	-55 °C	125 °C	10 %	5.08 mm	0.2 in	50 VDC	0.532 "	13.5 mm	10 µF
