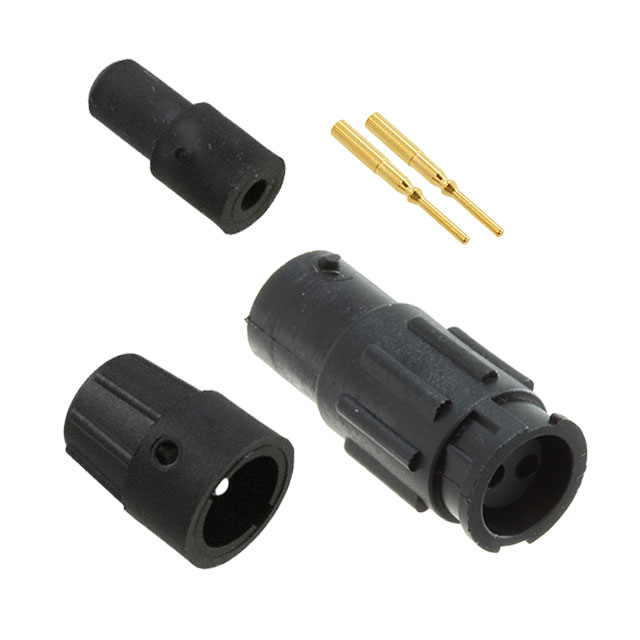

18280-2PG-315
ActiveConxall/Switchcraft
CONN RCPT MALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18280-2PG-315 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [custom] | 0.17 in, 0.15 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.36 | |
| 10 | $ 5.75 | |||
| 25 | $ 5.43 | |||
| 50 | $ 5.30 | |||
| 100 | $ 5.03 | |||
| 300 | $ 4.50 | |||
| 500 | $ 4.24 | |||
| 1000 | $ 3.71 | |||
| 2500 | $ 3.52 | |||
Description
General part information
18280-2P Series
2 Position Circular Connector Receptacle, Male Pins Crimp
