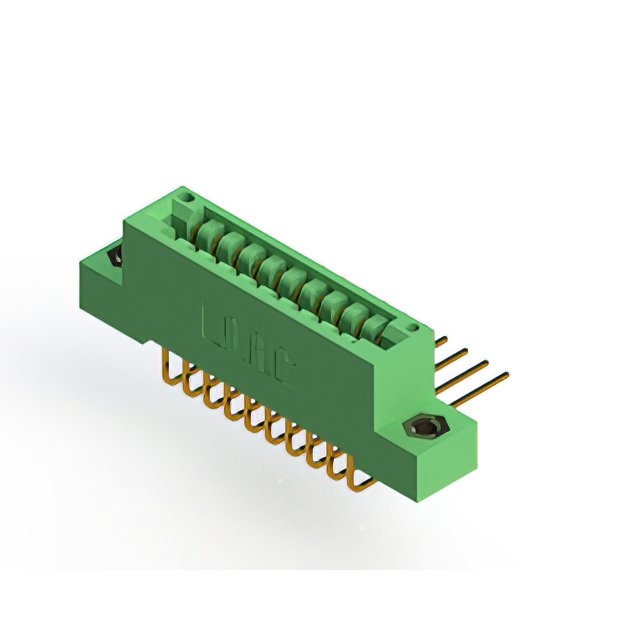

846-020-559-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-020-559-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-020-559-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-020 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions/Bay/Row [custom] | Contact Finish | Pitch [x] | Pitch [x] | Contact Type | Color | Termination Rows | Number of Positions | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Read Out | Card Type | Contact Material | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Wire Wrap | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | 10 Áin | 0.25 Ám | Female | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 1 | 20 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 1 | Single | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 " | 20 | 20 | 20 | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | 10 Áin | 0.25 Ám | Female | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 1 | 20 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | 1 | Single | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 20 | 20 | 20 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Floating Bobbin Flush Mount | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.95 mm | 0.116 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | 10 Áin | 0.25 Ám | Female | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 1 | 20 | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | 1 | Single | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 20 | 20 | 20 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Flush Mount Side Opening Unthreaded | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Wire Wrap | 10 Áin | 0.25 Ám | Female | 10 | Gold | 0.125 in | 3.18 mm | Cantilever | Green | 2 | 20 | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
