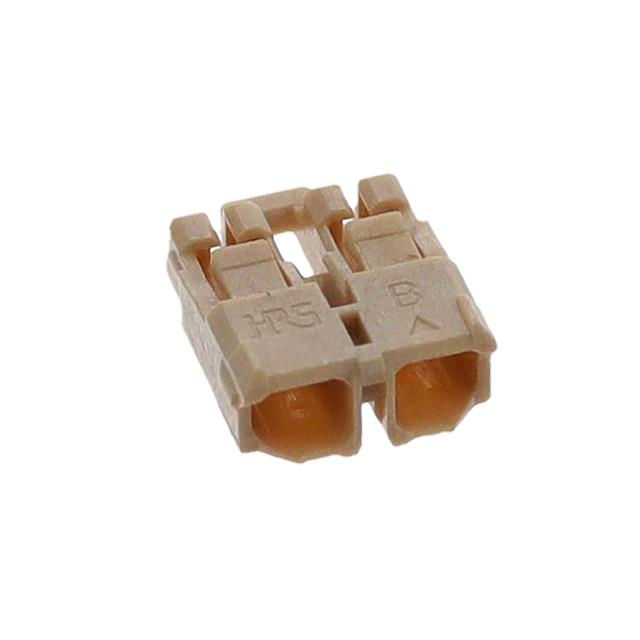

DF61Y-2S-2.2C(13)

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS 2.2MM CRIMP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS 2.2MM CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Color	Style	Termination	Connector Type	Insulation Material	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Features	Contact Shape	Contact Type	Material Flammability Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Voltage Rating	Mounting Type	Number of Rows	Contact Material	Contact Termination	Color	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF61Y-2P-2.2V(75)	Natural	Board to Cable/Wire	Solder	Header	Liquid Crystal Polymer (LCP)	2	Varies by Wire Gauge	All	-40 °C	105 ░C	Shrouded - 3 Wall	Solder Retention	Rectangular	Tab	UL94 V-0	Swing Lock	0.087 in	2.2 mm	0.079 in	2 mm	350 VAC	Surface Mount	1	Brass
Hirose Electric USA, Inc. DF61Y-2S-2.2C(13)				Receptacle	Liquid Crystal Polymer (LCP)	2			-40 °C	105 ░C				Female Socket								Free Hanging (In-Line)	1		Crimp	Natural	0.087 in	2.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Natural 0.087" (2.20mm)
