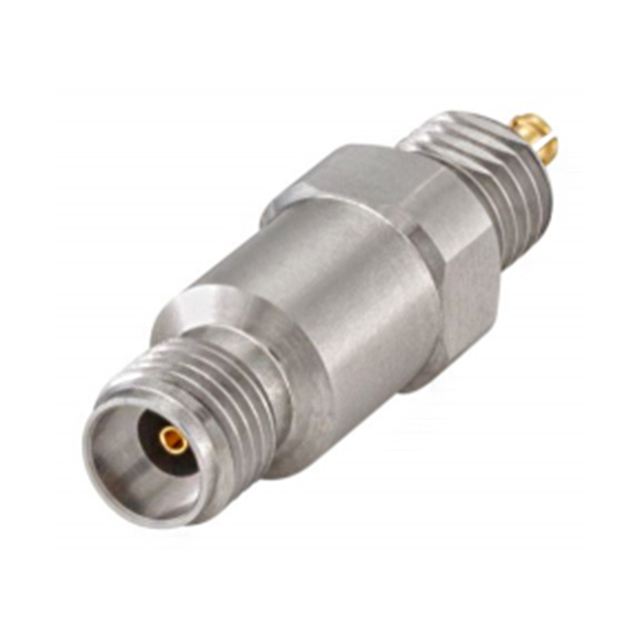

02K123-S00S3

Active

Rosenberger

RPC2.92-MINI-COAX, PANEL MOUNT, FEMALE-MALE, JACK-PLUG,

Search across all available documentation for this part.

Active

Rosenberger

RPC2.92-MINI-COAX, PANEL MOUNT, FEMALE-MALE, JACK-PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	02K123-S00S3

Adapter Series	RPC-2.92 to RPC-2.92
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Dielectric Material	Convert To (Adapter End)	Conversion Type	Center Contact Material	Adapter Series	Insertion Loss	Mounting Type	Style	Mating Cycles	Convert From (Adapter End)	Convert From (Adapter End)	Frequency - Max [Max]	Impedance	Body Material	Adapter Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 02K123-S00S3	Polystyrene (PS) Polytetrafluoroethylene (PTFE)	2.92mm (OS-2.9) Plug Male Pin	Same Series	Beryllium Copper	RPC-2.92 to RPC-2.92	0.25 dB	Free Hanging (In-Line)	Straight	500	2.92 mm	Jack Female Socket OS-2.9	40 GHz	50 Ohms	Stainless Steel	Plug to Jack	Gold	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 341.21

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
