HMC1512-TR
ActiveHONEYWELL / SENSOTEC

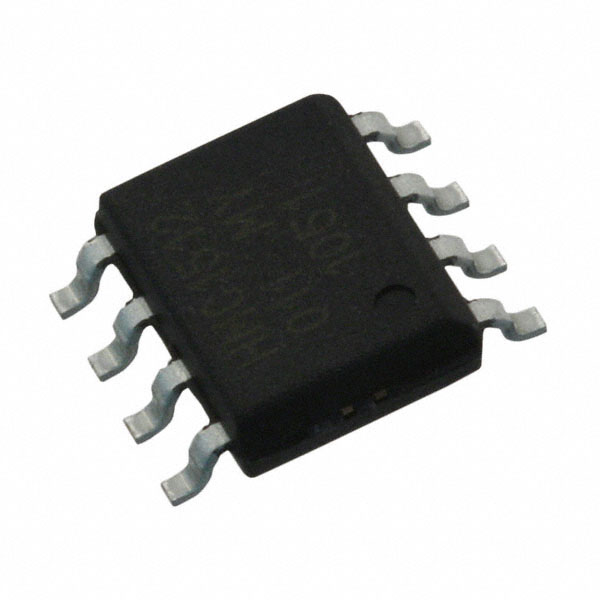

SENSOR ANGLE 180DEG 8MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HMC1512-TR
ActiveHONEYWELL / SENSOTEC
SENSOR ANGLE 180DEG 8MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC1512-TR |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Linear, Rotary, Angle |
| Linear Range [Max] [x] | 0.31 in |
| Linear Range [Max] [x] | 8 mm |
| Linear Range [Min] [x] | 0 mm |
| Linear Range [Min] [x] | 0 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Wheatstone Bridge |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Resistance | 2.8 kOhms |
| Rotation Angle - Electrical, Mechanical | 180 ° |
| Supplier Device Package | 8-SOIC |
| Technology | Magnetoresistive |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 25 V |
| Voltage - Supply [Min] | 1 V |
