ATS-55170W-C1-R0

Active

Advanced Thermal Solutions Inc.

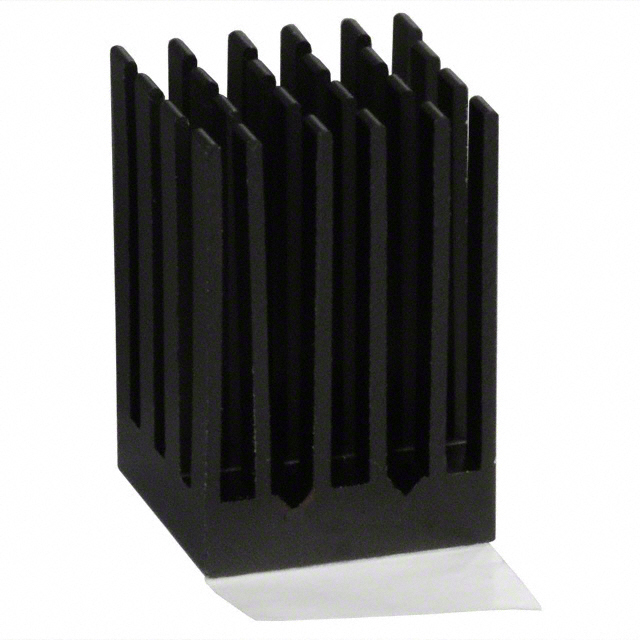

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 17X17X24.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-55170W-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, X-CUT, SQUARE FIN, 2 SIDE THERMAL TAPE, BLACK, 17X17X24.5MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-55170W-C1-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	24.5 mm
Fin Height [z]	0.965 in
Length [x]	0.669 in
Length [x]	17 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	8.6 °C/W
Type	Top Mount
Width [x]	0.669 in
Width [x]	17 mm

BGA Cross-Cut Series

Heat Sinks Heat Sink, X-CUT, 2 Side Thermal Tape, Black Anodize, T412, 19x19x19.5mm

...

Part	Fin Height [z]	Fin Height [z]	Shape	Attachment Method	Material Finish	Material	Package Cooled	Length [x]	Length [x]	Type	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Length	Length	Width [y]	Width [y]	Fin Height	Fin Height	Width
Advanced Thermal Solutions Inc. ATS-55170W-C1-R0	24.5 mm	0.965 in	Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA	0.669 in	17 mm	Top Mount	0.669 in	17 mm	8.6 °C/W
Advanced Thermal Solutions Inc. ATS-55325W-C1-R0	24.5 mm	0.965 in	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA			Top Mount			3.5 °C/W	32.51 mm	1.28 in	1.28 in	32.51 mm
Advanced Thermal Solutions Inc. ATS-55230W-C1-R0	24.5 mm	0.965 in	Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA	0.9 in	23 mm	Top Mount			6 °C/W 200 LFM			0.906 in	23.01 mm
Advanced Thermal Solutions Inc. ATS-55400D-C1-R0			Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	Aluminum	BGA			Top Mount	1.575 in	40 mm	10 °C/W 200 LFM					0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-55325D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount			12.5 °C/W	32.51 mm	1.28 in	1.28 in	32.51 mm	0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-1040-C2-R0			Rectangular Angled Fins	Push Pin	Green Anodized	Aluminum	BGA			Top Mount	1.5 in		1.6 °C/W					0.984 in	25 mm	38.1 mm
Advanced Thermal Solutions Inc. ATS-55375K-C0-R0	14.5 mm	0.571 in	Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount			5.6 °C/W 200 LFM	37.5 mm	1.476 in	1.476 in	37.5 mm
Advanced Thermal Solutions Inc. ATS-55250D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount	0.984 in		16.5 °C/W 200 LFM	25 mm	0.984 in			0.374 in	9.5 mm	25 mm
Advanced Thermal Solutions Inc. ATS-55310D-C0-R0			Pin Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA			Top Mount				30.99 mm	1.22 in			0.374 in	9.5 mm
Advanced Thermal Solutions Inc. ATS-55230D-C0-R0			Fins Square	Thermal Tape Adhesive (Not Included)	Black Anodized	Aluminum	BGA	0.9 in	23 mm	Top Mount			18 °C/W 200 LFM			0.906 in	23.01 mm	0.374 in	9.5 mm
