1785-0003

Active

Amphenol SV Microwave

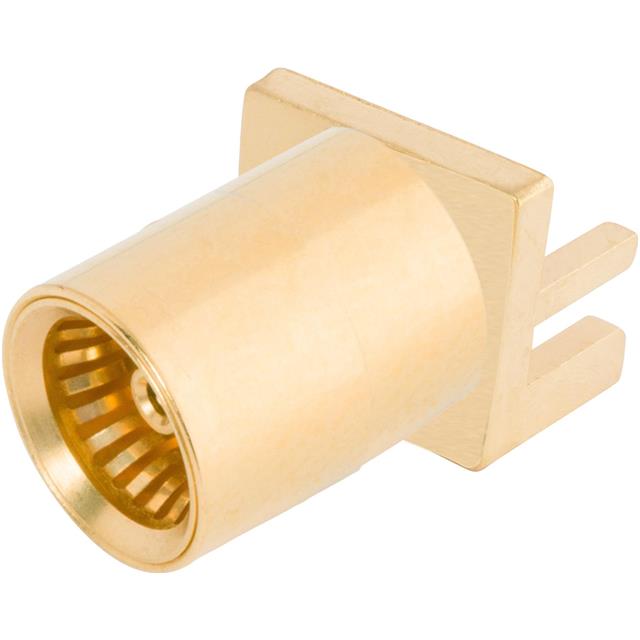

BMA FEMALE PCB EDGE LAUNCH CONNECTOR /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BMA FEMALE PCB EDGE LAUNCH CONNECTOR /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	1785-0003

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Board Edge, End Launch
Number of Ports	1
Shield Termination	Solder

Part	Dielectric Material	Housing Color	Body Finish	Connector Style	Connector Type	Impedance	Shield Termination	Mating Cycles	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Contact Termination	Body Material	Mounting Type	Fastening Type	Center Contact Material
Amphenol SV Microwave 1785-0003	Polytetrafluoroethylene (PTFE)	Silver	White Bronze	BMA	Female Socket Jack	50 Ohms	Solder	5000	1	Gold	22 GHz	Solder	Brass	Board Edge End Launch	Snap-On	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 48.18
Newark	Each	100	$ 72.08
		250	$ 70.99

General part information

BMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
